H07RN-F Cable

H07RN-F Cable

rubber insulation cable

H07RN-F flexible rubber cable, this model is often exported to European countries. It is also usually called VDE rubber cable wire, outdoor rubber wire, etc. It is highly flexible and resistant to weather, oil/grease, and mechanical and thermal stresses.ZMS, as a leading manufacturer, wholesales PVC insulated rubber flexible cables, as well as a wide range of accessories at excellent prices.

Standards: HRN HD 22.4 S3, IEC 60245-4, DIN VDE 0282

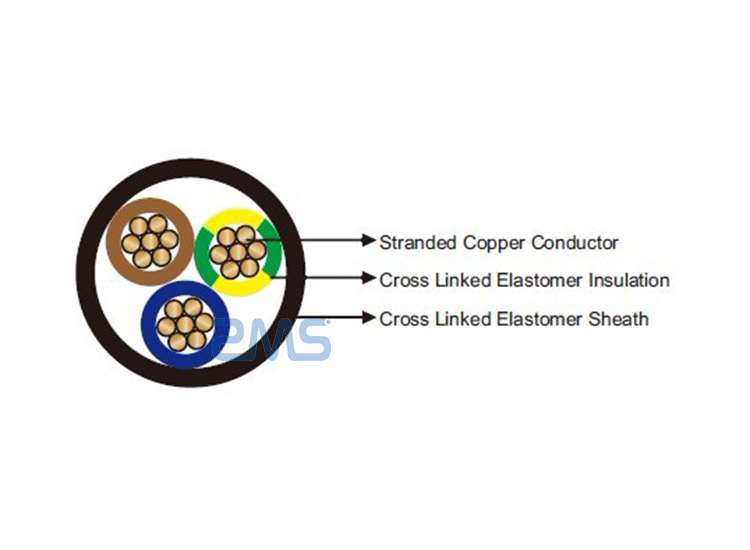

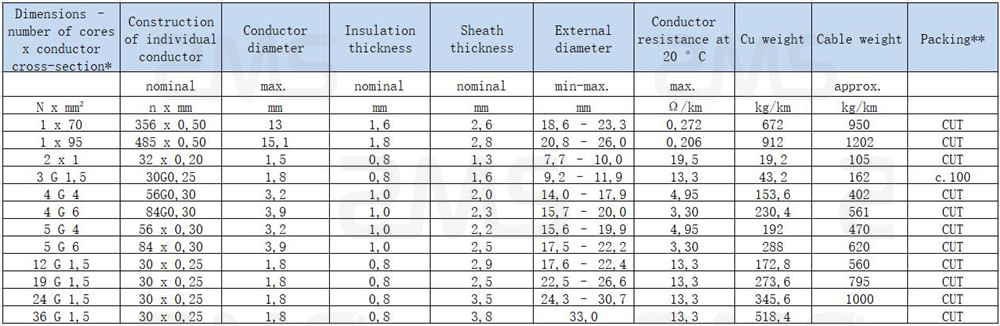

H07RN-F Structure and Parameters

Get a Quotation

Conductor: Flexible electrolytic annealed copper conductor, class 5 according to IEC 60228.
Insulation: Thermosetting rubber insulation, type E14 according to HD 22.
The standard identification according to HD 308 or EN 50334, is the following:
– up to 5 conductors: by color.
– 6 or more conductors: black numbered green/yellow.
Outer Sheath: Thermosetting rubber outer sheath, black color, type EM2 according to HD 22.
Temperature Range: -20°C to +90°C
Nominal Voltage: 450/750V
Test Voltage: 1000V
Standard: IEC

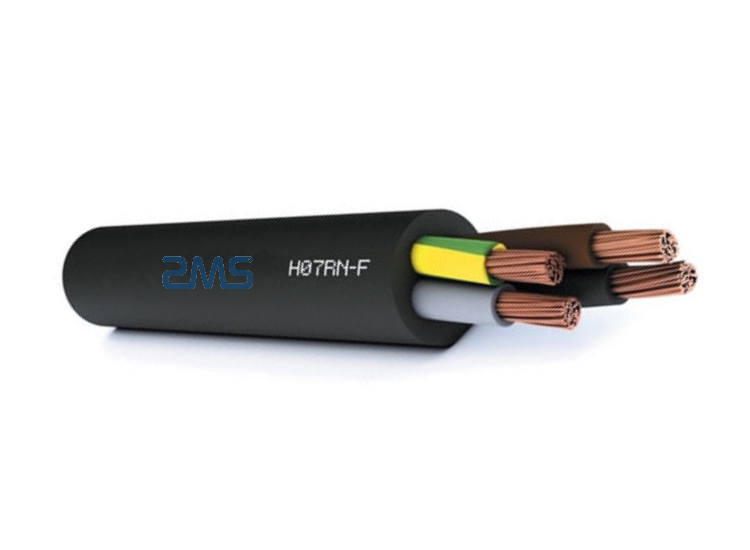

h07rn-f cable manufacturer

Product Characteristics

H07RN-F Cable Features

1. Strong Patience: They are designed to provide high flexibility and can withstand weather, oil, mechanical, and thermal stresses.
2. Special Wind Torsion Test: The H07RN-F cable passes the special 2.000-cycle Torsion Test required for wind generators (for single-core cables).
3. Improved Working Temperature: The H07RN-F can operate at work temperatures up to 90°℃, improving the HD 22 standard rated temperature, due to insulation with high thermal grade.
4. Rated Voltage Up to 1KV: possible thanks to the high dielectric properties of the insulation material (according to HD 5163.)
5. Weather Resistance: The properties of the thermosetting vulcanized rubber outer sheath on the H07RN-F cables allow permanent use outdoors.
6. Immersion Resistance: Exceeds the established tests for type H07RN8-F, suitable for functioning permanently submerged CAD83.
7. Resistance to Chemical Products: Vulcanized rubber outer sheath is the most effective protection against chemical products such as hydrocarbons and mineral oils.

H07RN-F Application

Applications for rubberized flexible cables

The rubber-sheathed flexible cables are mostly used as power cables for equipment in industry work such as boilers, heating plates, hand lamps, transportable motors, etc. They can be installed at medium mechanical stress in dry, damp, and wet areas as well as in open air and agriculture plants. These cables are also suitable for fixed plaster installation in temporary buildings and residential barracks. They are suitable for directly laying on machines’ components and mechanical parts like lifts and cranes.

The cables can be used in case of protected and fixed installation in tubes or equipment and rotor connecting cable of motors with a working voltage up to and including AC 1000V or DC 750V against the ground.
