Instrument Cable
Instrument Cables are suitable for signal transmission, and control circuits for instruments or other electrical equipment. Instrument cables are generally usually installed indoors, suitable for humid environments. In the industrial industry, it is often used for communication, data, and voice transmission signals and services, and can also be used as the interconnection of electrical equipment and instruments.

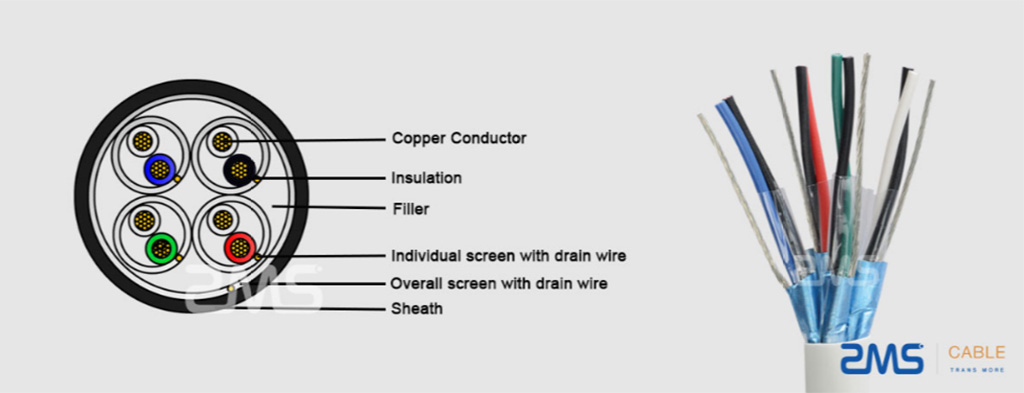

Instrument Cable Types
It must be said that the models and specifications of instrumentation cables are very many and complex, ZMS through many years of sales cooperation experience lists the following kinds of hot-selling instrumentation cables for you to choose from, if you have other customized needs, welcome to email us.

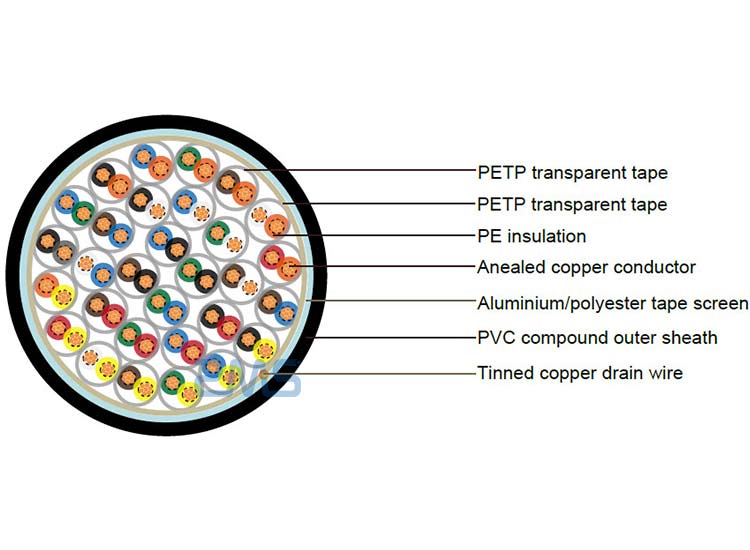

BS5308 Non Armored PE Insulation Total Shielding PVC Sheath
Conductor: Annealed or tinned copper
Dimensions: 0.5 mm² and 0.75 mm², Class 5 multi-strand, 0.5 mm² and 1.0 mm², Class 1 solid copper, 1.5 mm² and 2.5 mm², Class 2 multi-strand copper, in accordance with BS 6360
Insulation: PE (polyethylene), BS6234 compliant, Class 03.
Overall shielding: Aluminum composite shielding, metal side inwards, next to 0.5mm² drain wire
Sheath: PVC (Polyvinyl Chloride), by BS6746, TM Category 1 or 6.
Specification Parameters
| Logarithms | Conductor Strands and Diameters | Nominal Conductor Cross-Section Area | Nominal Insulation Thickness | Nominal Sheath Thickness |
| / | no./mm | mm2 | mm | mm |
| 1 | 1/0.8 | 0.5 | 0.5 | 0.8 |
| 2 | 1/0.8 | 0.5 | 0.5 | 0.8 |
| 5 | 1/0.8 | 0.5 | 0.5 | 1.1 |
| 10 | 1/0.8 | 0.5 | 0.5 | 1.2 |

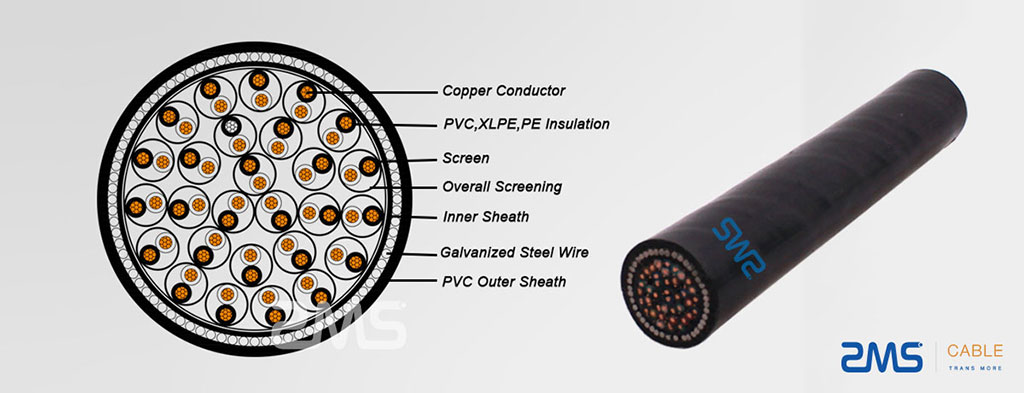

BS5308 Armored PE Insulation Total Shield Armor PVC Sheath
Conductor: Annealed copper or tinned copper.
Insulation: PE (polyethylene) to BS6234, Class 03.
Pairing: two cores twisted together with less than 100mm of insulation tape.
Bonding tape: transparent polymerized ester tape.
Overall shield: Aluminum-plastic composite shield, metal side inwards, next to 0.5 mm² drain wire
Inner jacket: PE (polyethylene) to BS6234, category 2C or 03 BS6234.
Armouring: Galvanized steel wire armouring
Specification Parameters
| Logarithms | Conductor Strand and Diameter | Nominal Conductor Cross-Section Area | Nominal Insulation Thickness | Nominal Inner Jacket Thickness | Nominal Inner Sheath Outer Diameter | Nominal Armor Thickness | Nominal Sheath Thickness |
| no./mm | mm2 | mm | mm | mm | mm | mm | |
| 1 | 1/0.8 | 0.5 | 0.5 | 0.8 | 5.5 | 0.9 | 1.3 |
| 2 | 1/0.8 | 0.5 | 0.5 | 0.8 | 6.8 | 0.9 | 1.3 |
| 5 | 1/0.8 | 0.5 | 0.5 | 1.1 | 10.9 | 0.9 | 1.4 |
| 10 | 1/0.8 | 0.5 | 0.5 | 1.2 | 14.4 | 1.25 | 1.6 |
| 15 | 1/0.8 | 0.5 | 0.5 | 1.2 | 16.5 | 1.25 | 1.6 |
| 20 | 1/0.8 | 0.5 | 0.5 | 1.3 | 18.8 | 1.6 | 1.7 |
BS5308 PE Insulation Total Shielding Lead Sheath Armor PVC Sheath
Conductor: Annealed or tinned copper, Dimensions: BS6360 compliant, 0.5mm² and 0.75mm², Type 5 multi-strand, 0.5mm² and 1.0mm², Type 1 solid copper, 1.5mm² and 2.5mm², Type 2 multi-strand copper
Insulation: PE (polyethylene), BS6234 compliant, Class 03.
Pairing: two cores twisted, with less than 100mm of insulation tape.
Bonding tape: transparent polymerized ester tape.
Overall shield: Aluminum-plastic composite shield, metal side inwards, next to the 0.5 mm² drain wire.
Inner jacket: PVC (Polyvinyl Chloride), according to BS6746, TM Category 1 or 6.
Specification Parameters
| Logarithms | Conductor Strands and Diameters | Nominal Conductor Cross-Sectional Area | Nominal Insulation Thickness | Nominal Inner Sheath Outer Diameter | Nominal Armor Thickness |
| no./mm | mm2 | mm | mm | mm | |
| 1 | 1/0.80 | 0.5 | 0.5 | 6.3 | 0.9 |
| 2 | 1/0.80 | 0.5 | 0.5 | 7.1 | 0.9 |
| 5 | 1/0.80 | 0.5 | 0.5 | 11.6 | 0.9 |
| 10 | 1/0.80 | 0.5 | 0.5 | 15 | 1.25 |
| 15 | 1/0.80 | 0.5 | 0.5 | 17.1 | 1.25 |
ESI 09-6 Issue 5 Multi-Pair Instrument Cable
These multi-pair cables are mainly used for the switching and power supply of control, indication, and alarm equipment. The normal operating voltage does not exceed 150V DC (or 110V AC), and if used in remote sensing and surveying equipment, a larger conductor cross-section is required. In addition, this cable is available with a total shield of aluminum foil. Polyethylene can be used as insulation instead of PVC if installed in a flooded, humid environment.
Conductor: Solid tinned annealed copper, size: BS6360 compliant, 1/0.9mm (0.64mm2)
Specification Parameters
| Logarithms | Nominal Conductor Diameter | Nominal Conductor Cross-Section Area | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Maximum Outer Diameter | Nominal cable weight |
| mm | mm2 | mm | mm | mm | Kg/Km | |
| Unshielded Cables | ||||||
| 2(Q) | 0.9 | 0.64 | 0.3 | 1.3 | 5.7 | 45 |
| 5 | 0.9 | 0.64 | 0.3 | 1.4 | 9.4 | 115 |
| 10 | 0.9 | 0.64 | 0.3 | 1.5 | 13 | 205 |
| Shielded Cables | ||||||
| 2(Q) | 0.9 | 0.64 | 0.3 | 1.3 | 6.2 | 50 |
| 5 | 0.9 | 0.64 | 0.3 | 1.4 | 9.9 | 125 |
| 10 | 0.9 | 0.64 | 0.3 | 1.5 | 13.5 | 215 |
Popular Science: Instrumentation Cable Selection
− According to the laying method, select the instrument cable protection serial number, whether it is armored or not, as well as the most basic size and specification.
− According to the conditions of use, area, and economy, choose copper core or aluminum core.
− According to the load size selection of specifications and several cores: lighting load selection of 4 cores, office buildings and important buildings selection of 4 +1 cores, less than 25mm2 when the selection of 5 cores.
− Voltage level should be matched with the line.
− 1kV and below the current of the cable is usually 2 times its power, and the purely resistive load current is 1.5 times its power.
− When the cable length is greater than 400 meters, the voltage drop should be considered when selecting cables.
− When selecting cables also take into account the starting current of the maximum load, the future development of the project, and the cross-section margin.
