FTTH Drop Cable

FTTH Drop Cables, as an important part of the FTTH network. It forms the final external link between the user and the feeder cable. Choosing the correct FTTH drop cable termination or interconnection solution will directly affect network reliability, operational flexibility, and the economics of FTTH deployment. The fiber optic drop cable is located at the user’s end. It is usually a small diameter, low fiber count cable with a limited unsupported span. It can be installed overhead, underground, or buried. The three most commonly used fiber drop cables include flat drop cables, figure-eight aerial drop cables, and round drop cables.

ZMS Company – Optical Fiber Cable Products

ZMS’s main products include power optical cables (ADSS, OPGW, OPPC optical cables), hardware accessories, FTTH, outdoor & indoor optical cables, special optical cables, and other optical cable accessories. We offer the best factory price for optical fiber cable.

FTTH Optical Fiber Drop Cable Types

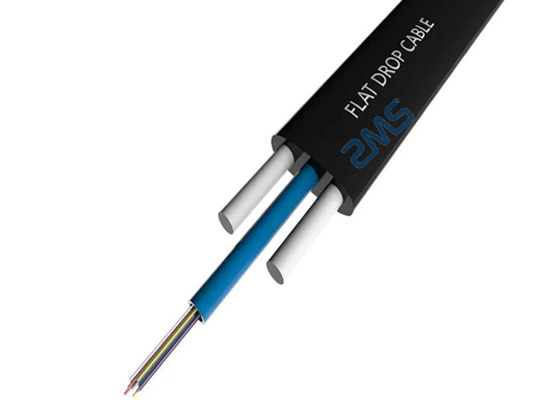

PE-Sheath-FRP-Flat-Fiber-Optic-Drop-Cable
1-12-Core-Indoor-FTTH-Drop-Cable-FRP-KFRP-Steel-Wire
1-12-Core-Indoor-FTTH-Drop-Cable-FRP-KFRP-Steel-Wire
1-12-Core-Outdoor-FTTH-Drop-Cable-With-LSZH-Jacket
1-12-Core-Outdoor-FTTH-Drop-Cable-With-LSZH-Jacket

ZMS Indoor / Outdoor FTTH Drop Cable

FTTH Fiber Optic Drop Cable is a very good fiber optic solution for the last mile of the home. ZMS provides different numbers of FTTH drop cables from 1 core, 2 core, 4 core, 6 core, 8 core, and 12 core, etc.

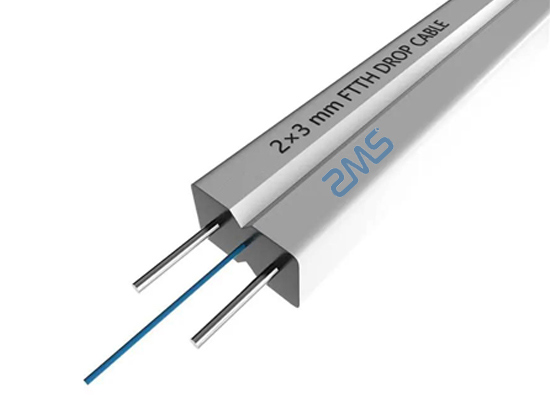

1-12-Core-Indoor-FTTH-Drop-Cable-FRP-KFRP-Steel-Wire
Get a Free Quotation

FTTH Optical Fiber Cable - GJXH (Non-metal Reinforced Type)

  • Non-metallic reinforcement, LSZH flame-retardant polyolefin sheath, butterfly-shaped drop cable.
  • In FTTH Fiber Drop Cable applications, it has both low-cost and good adaptability. Meet the design requirements of various access network optical cables and the use of multiple access methods. The finished fiber optic cable has excellent bending resistance, supports dense wiring, low bending additional loss under a small bending radius, and high mechanical reliability.
  • Facilitate construction and distribution of optical cables, easy to splice or connect.
  • Suitable for indoor wiring use in fiber-to-the-home projects. The cable structure is 2×3.0 mm butterfly shape. Both sides of the cable are low-smoke and halogen-free outer sheaths with FRP reinforcements. The center of the cable is 1-4 core G. 657A fiber.
  • Suitable for indoor wiring use in fiber-to-the-home projects.

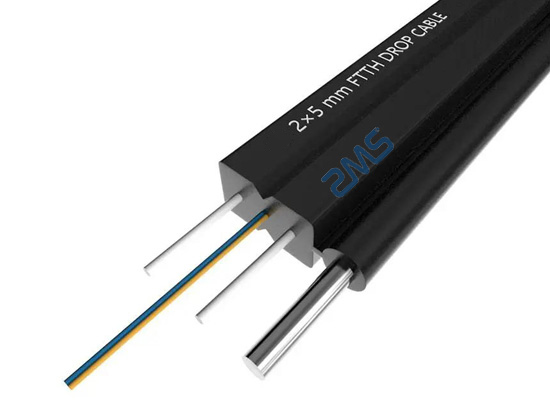

1-12-Core-Outdoor-FTTH-Drop-Cable-With-LSZH-Jacket
Get a Free Quotation

FTTH Optical Fiber Cable – GJYX(F)CH (Metal Reinforced Hanging Type)

  • The structure of the FTTH optical cable is to add a metal suspension wire to the structure of the GJXH optical cable.
  • The optical cable has a compact structure and excellent high and low-temperature performance.
  • The reinforced suspension wire adopts high carbon steel wire, which has superior tensile performance.
  • The optical fiber reinforcement has exceptional bending performance.
  • The sheath is made of low-smoke and halogen-free materials, which have superior flame-retardant properties.
  • This product is suitable for users to access the network.
Get a Free Quotation

Single Mode Simplex SM SX LC - LC FTTH Drop Optical Fiber Cable

  • Singlemode simplex LC-LC connector;
  • It also can do SC, ST, FC, or other connectors;
  • Polishing Type: PC, UPC, or APC all available;
  • Low Insertion Loss;
  • Available in OM1, OM2, OM3, OM4, OM5 and OS1/OS2 fiber types;
  • It can meet the requirements of high-speed fiber channel network connection;
  • It can be widely used in telecommunications and data centers.

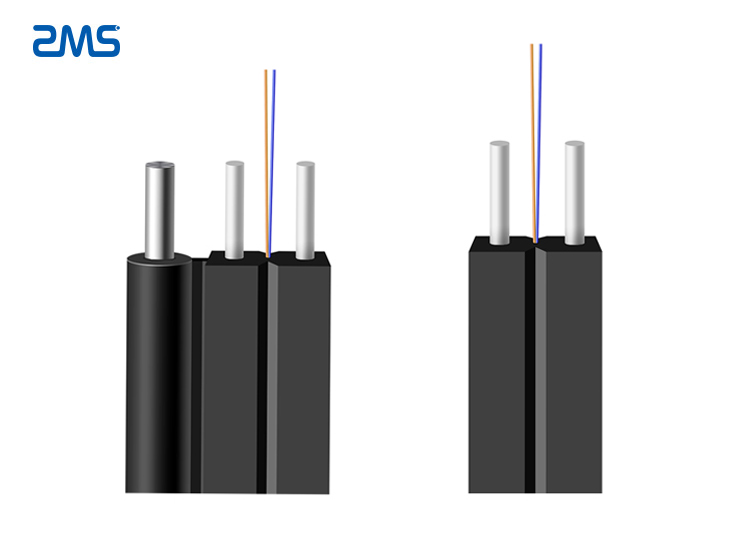

FTTH drop cable
Get a Free Quotation

Ftth Outdoor Overhead Single Mode G652d Flat Drop Cable

The cable consists of a central loose tube, filled with a synthetic oil-based jelly, non-nutritive to fungus, electrically non-conductive, homogeneous, and free from dirt and foreign matter, containing up to 24 optical fibers. Two Fiber Reinforced plastic (FRP) elements are longitudinally applied parallel with the tube, and an outer black PE sheath is UV resistant.

  • Compact design for self-supporting use
  • 2 FRP supports long span
  • Light weight and small diameter, easy to installation
  • Loose tubes with gel filled give good protection for the fiber

Choose the Correct Splicing Method

For the FTTH drop cable connector, there are two methods. One is welding and the other is mechanical splicing.

Welding has been proven to provide high-quality joints with low insertion loss and low reflection. However, due to the initial capital expenditure, maintenance cost, and slow installation speed of fusion splicing, it hinders its status as the preferred solution in many cases.

Mechanical splicing is widely used in the installation of FTTH fiber optic drop cables in various countries around the world. Mechanical splicing can be completed in 2 minutes using simple hand tools and cheap mechanical splicing devices on site.

Fiber Optical Cable Catalog

ZMS FIBER OPTICAL CABLE PDF

ZMS provides our partners around the world with brochures of our cable products, including aerial cables, submarine cables, control cables and other types of special cables, and more.

If you don’t know how to choose the product you need, or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS cable supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.

About ZMS Optical Cable Products

ZMS is a leading cable and optical cable manufacturer in China with 30 years of experience. ZMS provides one-stop R&D-production-sales logistics services to more than 100 countries around the world. ZMS optical cable passed the ISO 9001:2000 quality system certification in 2010. With a complete quality control system, excellent technical team, advanced equipment, and reliable quality, our products enjoy a high reputation in the domestic and foreign markets.

Over Productions Service: ZMS has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.

Quality Certification Services: ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.

Profession Customer Service: ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.

Delivery And Shipping Services: While we at ZMS provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.

Packaging of ZMS: ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
