Electric Cable Insulators are one of the important components widely used in contact nets. The insulator materials produced by ZMS are usually made of high-quality porcelain or composite. The most commonly used types are Pin type insulators, Suspension type insulators, Strain insulators, and Shackle insulators.
Advantages of ZMS Power Line Insulators
- High welding strength
- High electrical performance
- High electrical and corrosion resistance
- Long service life
- Not easy to break, high safety performance
Main Types of Power Line Insulators

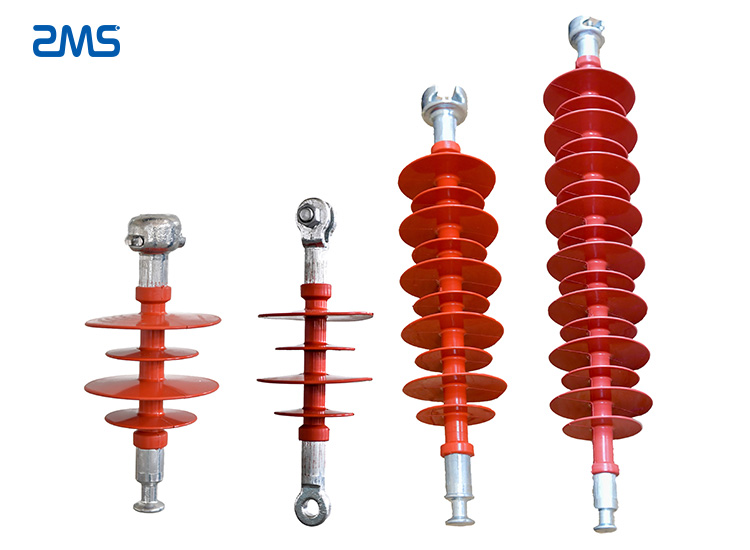

Strain Type insulators
- Strain insulator is an electrical insulator.
- They are commonly used in overhead transmission lines and are designed to work under conditions of mechanical tension changes in order to withstand the tension of suspended wires or cables.
- The typical strain insulator is made of glass, porcelain, or composite.
- Under certain conditions, strained insulators can be used in series: a group of insulators are connected to each other through dedicated hardware.
- In this way, the strained insulator can not only withstand greater physical tension, but also has higher and more effective insulation properties.
Pin Type insulator
- Pin-type insulators are power line insulators developed earlier.
- They are commonly used in power distribution systems with a maximum voltage level of 33kv.
- Pin insulators are usually made of porcelain, but in some cases glass or plastic can also be used.
- Since pin insulators are usually used in the open air, they are designed with canopies or petticoats. This can keeps its inner surface dry and non-conductive.
Suspension Type insulator
- When the overhead line voltage level exceeds 33kv, the volume and weight of the pin insulator will become larger.
- In this way, the pin insulator becomes very uneconomical. Therefore, we use suspension insulators to deal with voltage systems higher than 33KV.
- Suspension insulators are composed of many porcelain plates, which are connected to each other by wire-shaped metal chains.
- Each disc is designed for low voltage, such as 11kv. The sign of the disc depends on the operating voltage.
- Suspended insulators are the first choice for high-voltage transmission lines.

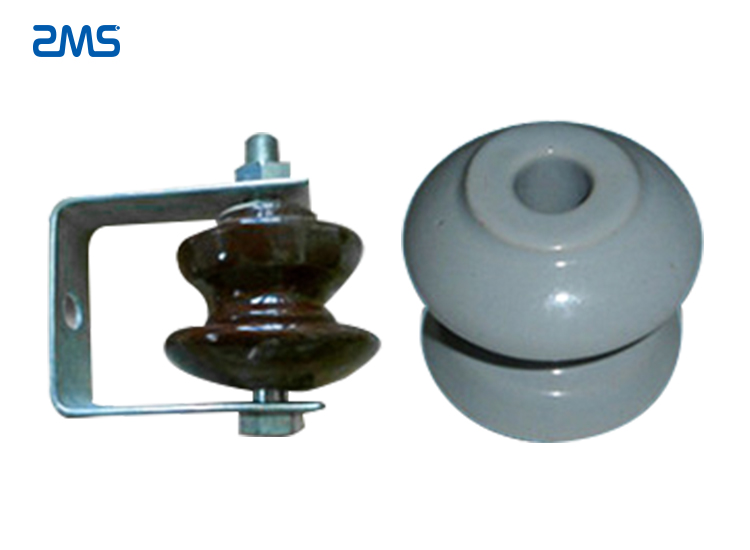

Shackle Type insulators
- Shackle-type insulators are commonly used on low-voltage and medium-voltage overhead transmission lines.
- This insulator can work in two positions, horizontal or vertical.
- The tapered holes of the shackle insulator can distribute the load more evenly and reduce the possibility of rupture in case of heavy load.
- The raw materials used in this insulator are mostly porcelain.
