N2XY / N2XY-O / N2XY-J 0.6/1 kV XLPE Power Cable
About N2XY Unarmoured Power Cable

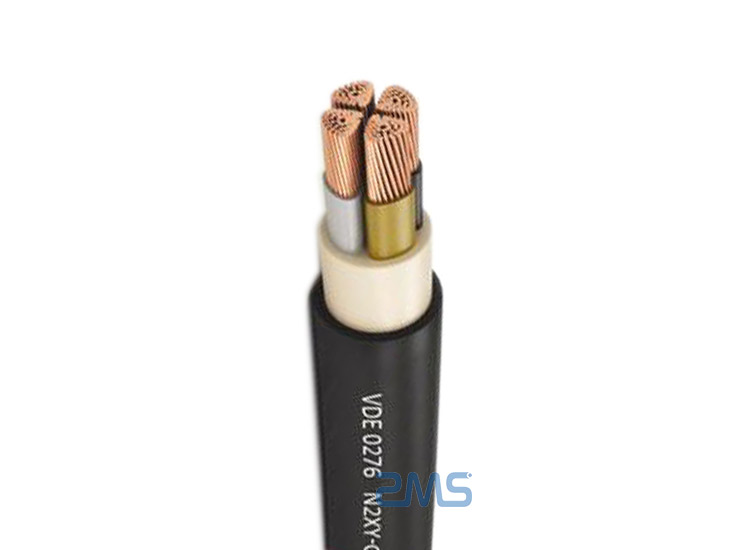

N2XY Cable Structure
N2XY Cable Performance
N2XY / N2XY-J Single-Core Cable Dimensions (0.6/1 kV, VDE 0276-603)
Size (mm²) | Design | Conductor (n×mm) | OD (mm) | Insul. (mm) | Sheath (mm) | Max. Resistance (Ω/km, 20°C) | Cu Weight (kg/km) | Cable Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
1×4 | RE | 1×2.25 | 8.0 | 0.7 | 1.8 | 4.61 | 0.46 | 38.4 |
1×6 | RE | 1×2.76 | 8.5 | 0.7 | 1.8 | 3.08 | 0.69 | 57.6 |
1×10 | RE | 1×3.56 | 9.5 | 0.7 | 1.8 | 1.83 | 1.15 | 96.0 |
1×16 | RE | 1×4.51 | 11.7 | 0.7 | 1.8 | 1.15 | 1.84 | 153.6 |
1×25 | RM | 7×2.13 | 13.0 | 0.9 | 1.8 | 0.727 | 2.87 | 240 |
1×35 | RM | 7×2.52 | 14.0 | 0.9 | 1.8 | 0.524 | 4.02 | 336 |
1×50 | RM | 19×1.83 | 16.0 | 1.0 | 1.8 | 0.387 | 5.75 | 480 |
1×70 | RM | 19×2.14 | 18.5 | 1.0 | 1.8 | 0.268 | 8.06 | 660 |
1×95 | RM | 19×2.52 | 20.5 | 1.1 | 1.8 | 0.193 | 10.9 | 890 |
1×120 | RM | 37×2.03 | 22.5 | 1.2 | 1.8 | 0.153 | 13.7 | 1120 |
1×150 | RM | 37×2.25 | 24.5 | 1.4 | 1.8 | 0.124 | 17.2 | 1400 |
1×185 | RM | 37×2.52 | 25.3 | 1.6 | 1.8 | 0.0991 | 21.3 | 1776 |
1×240 | RM | 61×2.25 | 28.5 | 1.7 | 1.8 | 0.0754 | 27.7 | 2300 |
1×300 | RM | 61×2.52 | 31.5 | 1.8 | 1.9 | 0.0601 | 34.6 | 2900 |
1×400 | RM | 61×2.85 | 35.0 | 2.0 | 2.0 | 0.0471 | 46.2 | 3850 |
Not sure which cable fits your project? Our engineers can help.
N2XY 0.6/1 kV Power Cable Applications
- Main and sub-distribution in commercial and industrial buildings
- Connection of transformers, switchgear, and control panels
- Underground installation in cable ducts and trenches
- Urban network supply and industrial power feeders
- Max conductor temperature: 90 °C normal, 250 °C short-circuit (max 5 s).
- Installation ambient temperature: not below 0 °C; preheat if colder.
- Min bending radius: 15 × OD (single-core), 12 × OD (multi-core).
- PVC sheath provides resistance to acids, alkalis, and oils in normal industrial environments.
Characteristics of N2XY Cable: Why Choose Us
N2XY cable is a low-voltage power cable designed for reliable electrical power distribution in commercial buildings, industrial facilities, and infrastructure projects. It typically features copper conductors, cross-linked polyethylene (XLPE) insulation, and a polyvinyl chloride (PVC) outer sheath. This construction provides good electrical insulation, thermal stability, and durability for fixed electrical installations.
The main characteristics of N2XY cable include the following.
Excellent Thermal Performance
N2XY cable uses XLPE insulation, which provides good thermal stability under normal operating conditions. The maximum continuous conductor operating temperature is typically 90°C, while the maximum short-circuit temperature may reach 250°C for a specified duration of up to 5 seconds, depending on the applicable standard and cable design.
These thermal properties make N2XY cable suitable for low-voltage power distribution systems with demanding operating requirements.
Reliable Electrical Insulation
The XLPE insulation offers high electrical resistivity, good dielectric strength, and low dielectric losses. These properties help maintain stable electrical performance and reliable power transmission in fixed installations.
N2XY cable is commonly available with a rated voltage of 0.6/1 kV, making it suitable for a wide range of low-voltage electrical distribution applications.
Durable PVC Outer Sheath
The PVC outer sheath provides protection against normal environmental exposure, abrasion, and minor mechanical impacts encountered during installation and operation. Its performance depends on the sheath compound and the conditions in which the cable is installed.
For applications involving significant mechanical stress or a high risk of physical damage, additional mechanical protection or a suitably armoured cable should be considered.
Flexible Installation Options
N2XY cable is suitable for fixed installations in buildings, industrial facilities, cable ducts, and other electrical distribution systems. Depending on the product specification and installation requirements, it may also be installed underground with appropriate mechanical protection.
Its suitability for a particular project depends on the installation method, environmental conditions, cable size, and applicable electrical standards.
Reliable Performance for Power Distribution
The combination of copper conductors, XLPE insulation, and a PVC outer sheath makes N2XY cable a practical solution for low-voltage power distribution. Available conductor sizes and single-core or multicore configurations allow project designers to select a suitable cable for different electrical loads and installation requirements.
Before selecting an N2XY cable, buyers should verify the rated voltage, conductor cross-sectional area, number of cores, current-carrying capacity, installation conditions, and applicable product standards.
