NYCY CABLE
NYCY Cable is used in industry, power distribution cabinets, power plants, in-plant connection boxes, and street lighting, and also as control cables for control transmission of impulses and test data. The use of fully increased electrical and mechanical protection is required. This cable can be laid outdoors, underground, in water, indoors, or in cable ducts.
ZMS Cables is a leading supplier of high-quality cables for various applications. Our state-of-the-art manufacturing facilities and a team of skilled engineers and technicians enable us to produce cables that meet the highest performance and durability standards. This includes NYCY cable and other cables in the same fixed wiring family, such as NYCWY cables. Contact us today and ZMS Cables can provide the cable solution you need at a competitive price.
NYCY Cable Intruduction

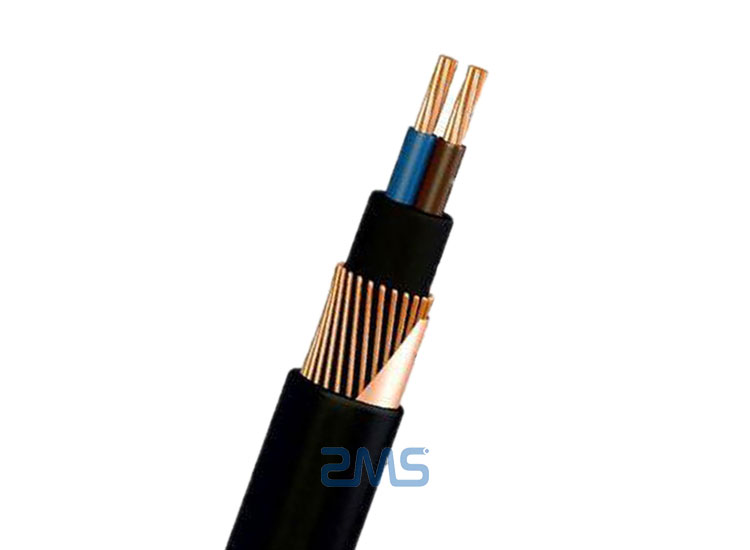

NYCY Cable is a European power cable insulated, bound, and sheathed in Polyvinyl Chloride (PVC). For static installation where no mechanical damage is expected.

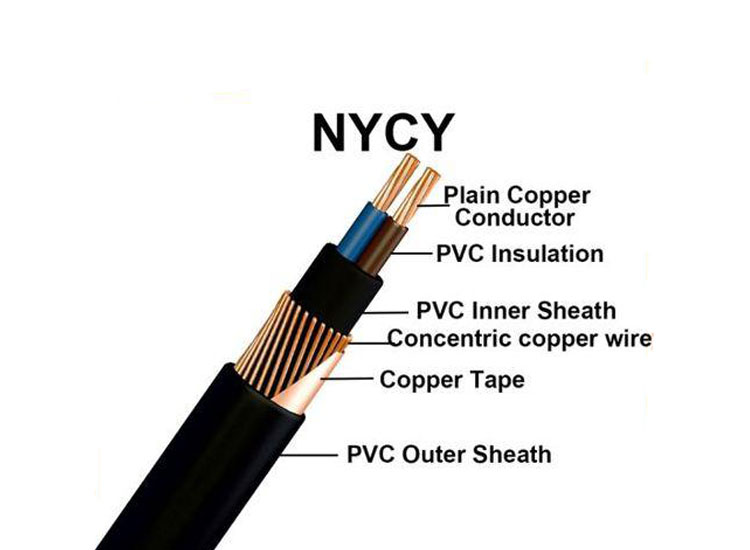

NYCY Technical Structure
Conductor: Multi-strand bundle twisted fine wire conductor according to VDE 0295 and IEC 60288 category 1 conductor.
Insulation: Special PVC mix.
Cores: Cores stranded into cables, core colors according to VDE 0293.
Colored or coded cores, 3 or more cores with yellow and green bicolor wires (optional).
Inner sheath: special PVC mix.
Concentric spiral ground wire: external spiral conductor stranded by bare copper wire. Cross-conducting copper tape connection, counter spiral.
Color of outer sheath: black, various colors can be selected according to customers’ needs.
NYCY Technical Characteristics
Working voltage: 600/1000 V
Dynamic bending radius: 15 x Ø
Static bending radius: 12 x Ø
Operating temperature during application: -5º C to +50º C
Fixed installation temperature: – 40º C to +70º C
Temperature reachable in case of short circuit: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: >100 MΩ x km
Bending radius: single conductor 15 x ø, multi-conductor 12 x ø
NYCY Cable Specification Parameters
| No. of cores and cross section mm2 | Copper weight kg / km | Approx outside in mm ca. | Approx weight kg / 100m |
| 2 x 1.5 RE / 1.5 | 52 | 13 | 245 |
| 3 G 1.5 RE / 1.5 | 66 | 14 | 290 |
| 4 G 1.5 RE / 1.5 | 81 | 15 | 330 |
| 7 G 1.5 RE / 2.5 | 133 | 17 | 440 |
| 10 G 1.5 RE / 2.5 | 176 | 19 | 550 |
| 12 G 1.5 RE / 2.5 | 205 | 20 | 620 |
| 14 G 1.5 RE / 2.5 | 235 | 21 | 680 |
| 19 G 1.5 RE / 4 | 320 | 23 | 840 |
| 24 G 1.5 RE / 6 | 415 | 26 | 1030 |
| 30 G 1.5 RE / 6 | 500 | 27 | 1180 |
| 40 G 1.5 RE / 10 | 696 | 30 | 1500 |
The above is part of the reference data, about NYCY cable types and specifications, ZMS has more production standards and ending programs, welcome to a free consultation.
NYCY Cable Characteristics
The long-term operating temperature of the cable should not exceed 70º C
Bendability, humidity resistance
Can withstand moderate mechanical stress
The concentric spiral ground wire can reduce inductance
Direct burial: when the PVC cable in question is buried directly without additional, appropriate underground protection: normal minimum installation depth is 0.6 m, but at least 0.8 m under the road
When used in concrete: the cable can be used in concrete at a maximum cable operating temperature of +70°C
In water: no more than 2 weeks at a time, maximum submersion depth of 10 meters, only in static water / no shipping traffic in the water body
Flame retardant: flame-retardant and self-extinguishing by IEC 60332-1
