Insulation Piercing Clamp

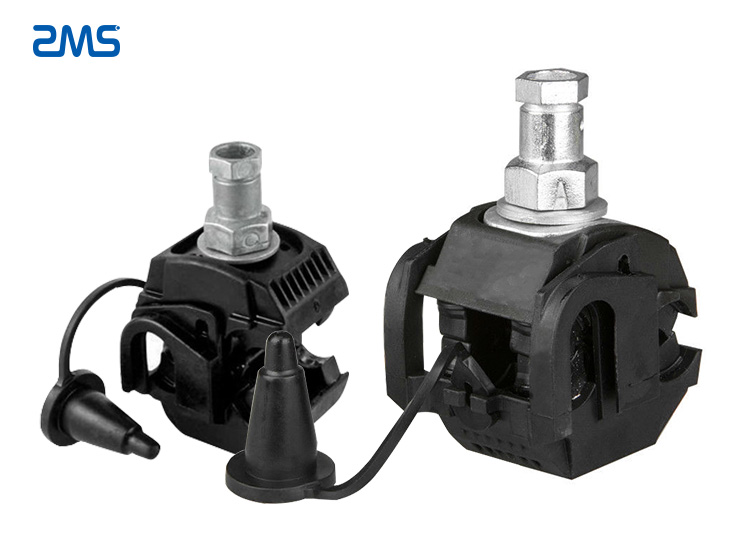

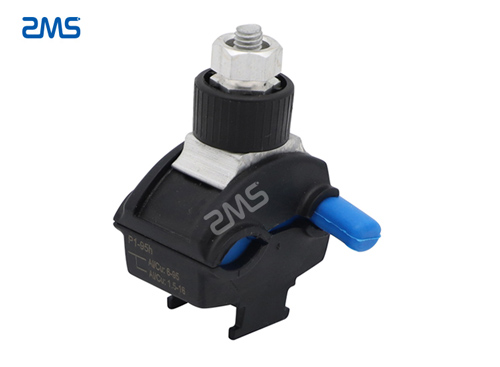

Insulation piercing clamp is a kind of insulation layer for piercing cable. It can achieve electrical connection, insulation and sealing of the clamp. Our products are suitable for T connection and distribution lines, street lighting systems, cable branches and other occasions.
Product Features and Advantages:
- Puncture structure, simple installation, no need to peel the insulated wire.
- Torque nut, constant puncture pressure to ensure good electrical connection ears do not damage the wire.
- Self-sealing structure, moistureproof, waterproof, anticorrosion, prolongs the service life of insulated wire and clamp.
- Tin-plated copper alloy or high hardness aluminum alloy contact blade, suitable for copper (aluminum) butt and copper aluminum transition.
- Special insulating shell, resistant to UV and environmental aging.
Tension Resistance of Suspension Clamps
The contact blade of the clamp is made of high hardness aluminum alloy with high quality tin-plated copper. It not only guarantees the optimal contact surface, but also is suitable for the transition of copper and aluminum. The insulation shell is mixed with glass fiber to increase the strength of the body and achieve the best mechanical properties.

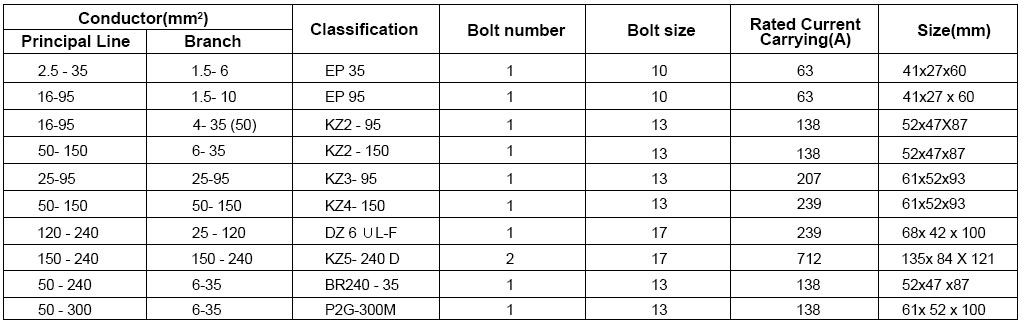

Product Selection Table --- 1KV Insulation Piercing Clamp
| Principal Line | Branch | Classification | Bolt Number | Bolt Size | Rated Current Carrying(A) | Size(mm) |
|---|---|---|---|---|---|---|
| 2.5-35 | 1.5-6 | EP 35 | 1 | 10 | 63 | 41*27*60 |
| 16-95 | 1.5-10 | EP 95 | 1 | 10 | 63 | 41*27*60 |
| 16-95 | 4-35(50) | KZ2-95 | 1 | 13 | 138 | 52*47*87 |
| 50-150 | 6-35 | KZ2-150 | 1 | 13 | 138 | 52*47*87 |
| 25-95 | 25-95 | KZ3-95 | 1 | 13 | 207 | 61*52*93 |
| 50-150 | 50-150 | KZ4-150 | 1 | 13 | 239 | 61*52*93 |
| 120-240 | 25-120 | DZ 6 UL-F | 1 | 17 | 239 | 68*42*100 |
| 150-240 | 150-240 | KZ5-240D | 2 | 17 | 712 | 135*84*121 |
| 50-240 | 6-35 | BR240-35 | 1 | 13 | 138 | 52*47*87 |
| 50-300 | 6-35 | P2G-300M | 1 | 13 | 138 | 61*52*100 |

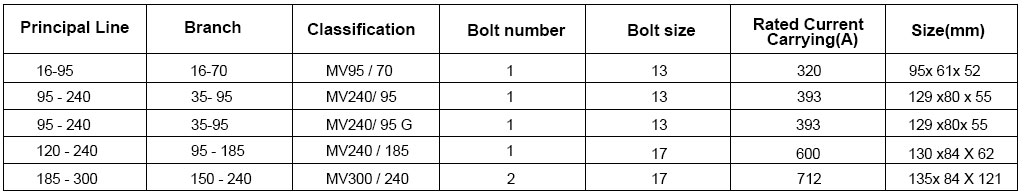

Product Selection Table --- 10KV Insulation Piercing Clamp
| Principal Line | Branch | Classification | Bolt Number | Bolt Size | Rated Current Carrying(A) | Size(mm) |
|---|---|---|---|---|---|---|
| 16-95 | 16-70 | MV95/70 | 1 | 13 | 320 | 95*61*52 |
| 95-240 | 35-95 | MV240/95 | 1 | 13 | 393 | 129*80*55 |
| 95-240 | 35-95 | MV240/95 G | 1 | 13 | 393 | 129*80*55 |
| 120-240 | 95-185 | MV240/185 | 1 | 17 | 600 | 130*84*62 |
| 185-300 | 150-240 | MV300/240 | 2 | 17 | 712 | 135*84*121 |
Note: Insulation puncture clamp conforms to international NF C33020; GB/T3048.7; GB/T2314. Insulation puncture clamp is suitable for overhead line and underground cables including cross-linked polyethylene (XLPE), polyvinyl chloride (PVC), polyethylene (PE) insulation materials. Note: The above parameters are for reference only. The specific size depends on the cable or project requirements for selection. Enquire Us Now.

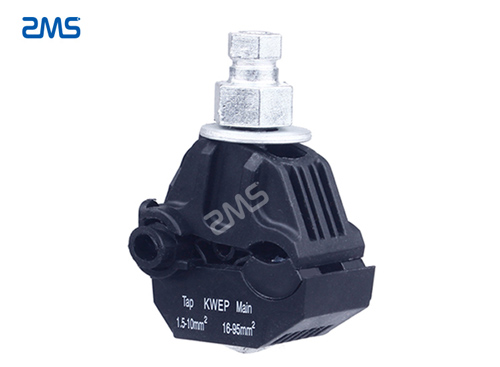

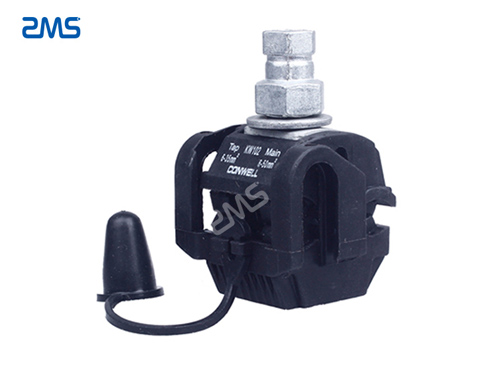

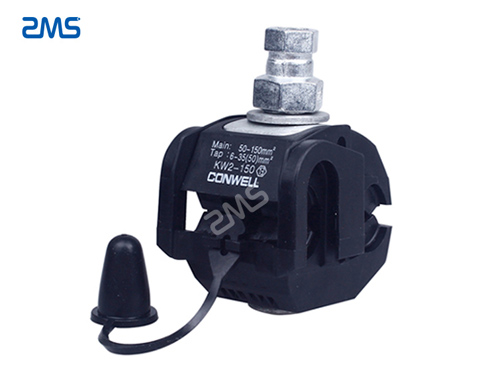

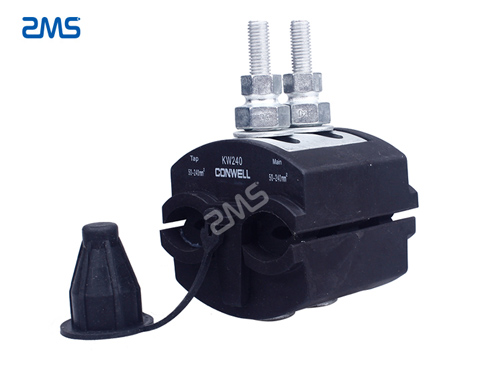

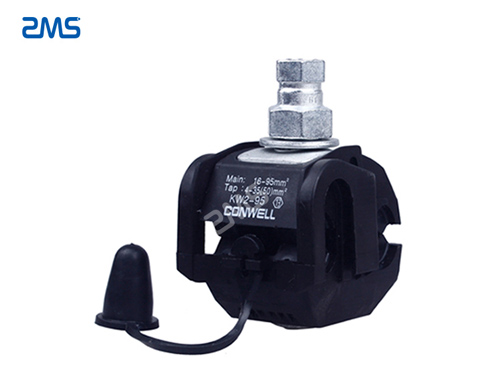

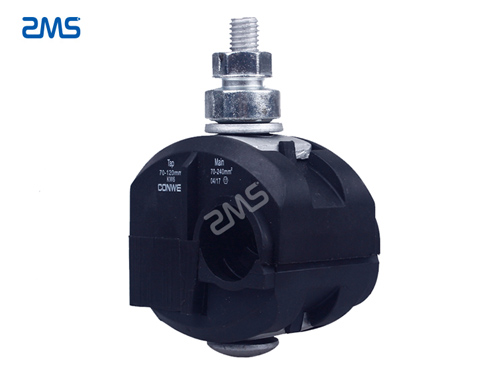

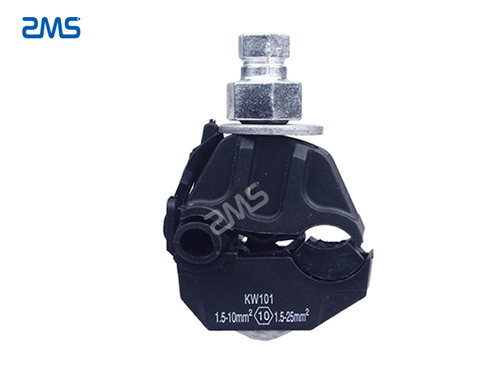

The Other Types of Hot Insulation Piercing Clamp Products
About ZMS Cable Accessories Manufacturer & Wholesaler
- ZMS Cable Group Co., Ltd. is a leading manufacturer and supplier of power cables and cable accessories and heat shrinkable products in global. ZMS company was established in 1990 and now has more than 30 years of development history.
- We always adhere to the competitive strategy of differentiation, internationalization and self-development. We aim to become a leader in the global cable and cable accessories industry. Our products have obtained ISO9001, ISO14001, UL, CSA and KEMA and other international certifications.
- ZMS company relies on excellent product quality, meticulous customer service, and efficient and fast delivery capabilities. We sincerely invite you to cooperate with you to achieve excellent results.
- ZMS factory has imported several large-scale equipment and production lines of power cables and cable accessories from Germany, Hong Kong and Taiwan.
- These production lines have laid a solid foundation for our R&D and quality assurance. Our cable accessories products have a high reputation in the Philippines, UAE, Kenya and other countries and regions.
- We not only produces high-quality cable terminations, but also types of cable insulators, cable lugs, cable clamps and other cable accessories made of top materials.
