ADSS Cable
ADSS Cable in full form is also called an all-dielectric self-supporting optical cable. The composition of the ADSS optical fiber cable is A composite optical cable made by winding the optical fiber bundle on the central strengthening member. And then going through protective measures such as insulation, waterproofing, reinforcement, and sheath. ZMS ADSS cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.
- ZMS is a leading manufacturer of aerial fiber optic cables globally. Our main products are ADSS Cable, OPGW Cable, OPPC Cable, and aerial optical cable fittings.
- The company has a sound quality management system, a high-quality technical team, advanced manufacturing equipment, reliable product quality, and the best price. As a result, we have won a good reputation in the international market.
- ZMS optical fiber cable manufacturer company will be your reliable overhead optical fiber cable product partner.
ADSS Cable Specification
ZMS can customize the number of cores of ADSS fiber optic cables according to customer needs. The number of cores of ZMS optical fiber ADSS cable is 2, 6, 12, 24, 48 cores, etc. If you need more detailed ADSS cable specifications or PDF files, please feel free to contact us.

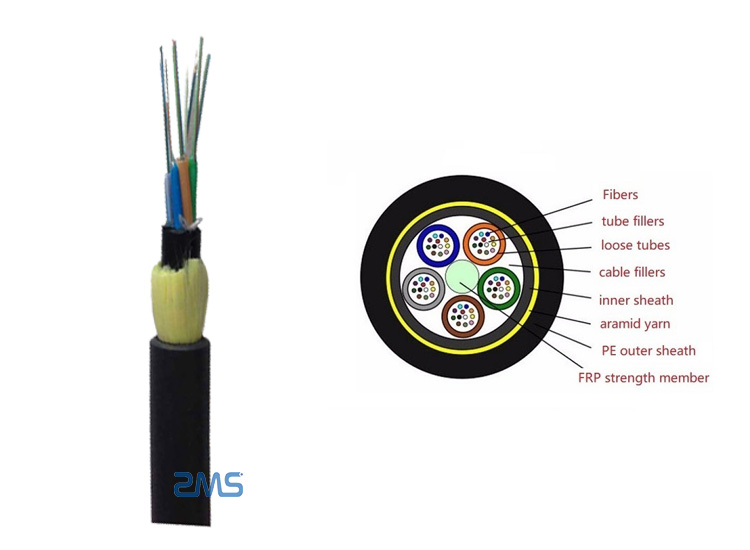

Single Jacket All Dielectric Self Supporting ADSS Optical Fiber Cable
- Number of fibers up to 144
- The nominal diameter and bending radius of the cable are small
- The smaller circular profile further reduces wind and ice loads
- The single cable diameter of 2 ~ 60 fibers simplifies the selection and splicing of hardware
- A wide variety of B-route fibers
- Excellent short-span ability
- Effective and economical alternative short span
- Light weight, easy to operate and install
- A single MDPE sheath for fast and convenient cable preparation

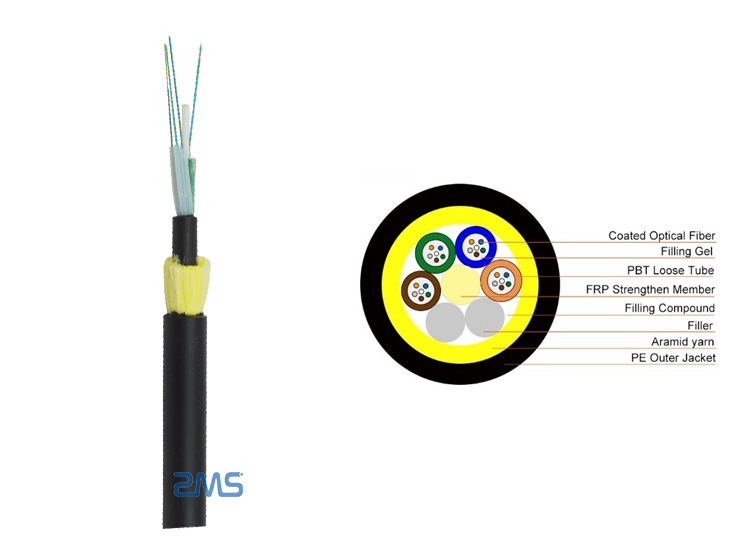

Double Jacket All-Dielectric Self-Supporting (ADSS) Optical Fiber Cable
- Number of fibers from 300 to 864
- Enhanced technology enables efficient, cost-effective large-scale welding
- Customized design by application
- ZMS's water blocking technology makes the cable core more process-friendly
- Increase bandwidth and carrying capacity in high-density applications
- High-efficiency, low-cost large-scale welding, which can simplify installation and save labor costs
- Depending on sag and load conditions, excellent performance is suitable for spans up to 1000 feet (0.3 km)
Cable parameters and standards
Model: GL Fiber Single Jacket ADSS Fiber Optic Cable;
Fiber Type: ITU G652D,G657A,OM1,OM2,OM3,OM4;
Fiber counts:2-144 Core is available;
Span: 50M~200M.
Standards: GL Technology’s ADSS Fiber Cable complies with IEC 60794-4, IEC 60793, and TIA/EIA 598 A standards.
Cable Features and Application
ZMS ADSS aerial optical fiber cable is a kind of combined optical cable made by winding the optical fiber bundle on the central strength member, after insulation, waterproofing, reinforcement, sheath, and other protective measures. ADSS cable is mainly installed on the existing 220kV or lower power line. Layer or central tube design. Ar amid yarn is used as a strength component to enhance tensile and strain properties. The outer sheath can be divided into PE and tracking resistance PE to correspond to space potentials lower than and greater than 12kV.
Main Features
- Precise fiber excess length control ensuring the fibers free from stress when the cable is subject to the maximum design load.
- Precise control of pay-off tension and the stranding lay of aramidyam enhancing the tensile strength of the cable.
- Employing the material with excellent tracking resistance, offering more safety in high inductive potential environment.
Application
- Railways, power and telecommunication pole routes
- Can be used in areas suffered from frequent lightning
- Ideal for transmission lines with high electrical field strength
- Suitable for installation on poles and on the power distribution network
- Aerial self-supporting applications at short, medium and long span distances
Installation Mode
Typical Pole & Tower Installation Position Drawing
- Loose tube fiber
- Non-metallic central strength member
- Jelly filling in the tube and core
- PE inner sheath
- Well-distributed stranding aramidyarn and anti-track outer sheath
- Installed on the same poles/towers of the electric power transmission line
- Can be bundled with ground wire or packaged
Optical Parameter
| / | G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuate (+20℃) | @850nm | / | / | ≤3.0dB/km | ≤3.0dB/km |
| @1300nm | / | / | ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | / | / | |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | / | / | |
| Bandwidths （Class A） | @850 | / | / | ≥500MHZ·km | ≥500MHZ·km |
| @1300 | / | / | ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture | / | / | / | 0.200±0.015NA | 0.275±0.015NA |
| Fiber Cutoff Wavelength | / | ≤1260nm | ≤1480nm | / | / |
Structural Properties
| Reference OD mm | Reference Weightkg/km | Max. Working Tension | Max. Allowable Working Tension KN | Rupture Strength KN | Cross-Sectional Area of Tensile Elementmm² | Modulus of ElasticityKN/mm² | CTE | Suitable Gear Pitch/m | ||||
| PE Protective | AT Protective | ×10-6/k | A | B | C | D | ||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
| 16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | 0.1 | 880 | 650 | 880 | 650 |
| 16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.4 | 1000 | 750 | 1000 | 760 |
| 17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.5 | 1100 | 800 | 1100 | 830 |
| 17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.6 | 1180 | 880 | 1180 | 900 |
ZMS ADSS CATALOG
ZMS ADSS CABLE PDF
ZMS provides our partners around the world with brochures of our cable products, including aerial cables, submarine cables, control cables and other types of special cables, and more.
If you don’t know how to choose the product you need or can’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we will provide you with adss cable in full form, we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS cable supplier has many quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.

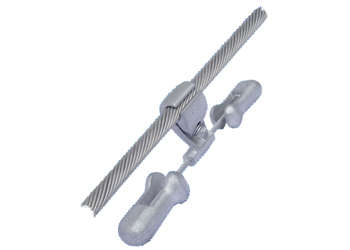

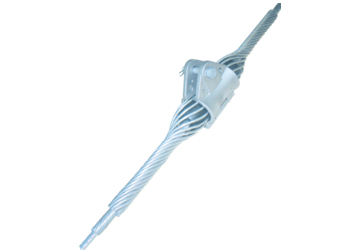

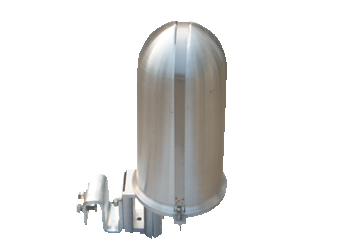

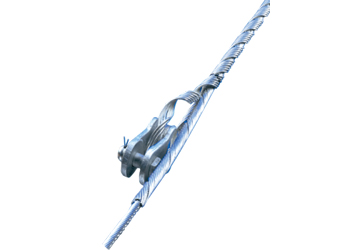

ADSS Optical Cable Related Accessories
The iron or aluminum metal accessories widely used in optical cable products are collectively referred to as fittings. There are many types of fittings with different uses. Most of the fittings need to withstand greater tension during operation, and some must also ensure good electrical contact at the same time. It is related to the safety of the wire or the tower. Even if one is damaged, it may cause a line failure. Therefore, the quality, correct use and installation of fittings have a certain impact on the safe power transmission of the line.
About ZMS Optical Cable Products
ZMS has many years of experience in manufacturing various types of fiber optic cables, and we have practiced and learned from fiber optic cable projects in many countries around the world. In cooperation with Bhutan, Ecuador, Thailand, and other countries in the fiber optic cable project, customers have given ZMS product quality high praise.
With ZMS, we have always been adhering to the principle of quality-oriented production, as short as possible delivery cycle, manufacturing fiber optic cables, will take into account a variety of factors for customers to save project costs and improve product performance. ZMS supports customized cables.
