LSZH Cable

Low smoke zero halogen cables

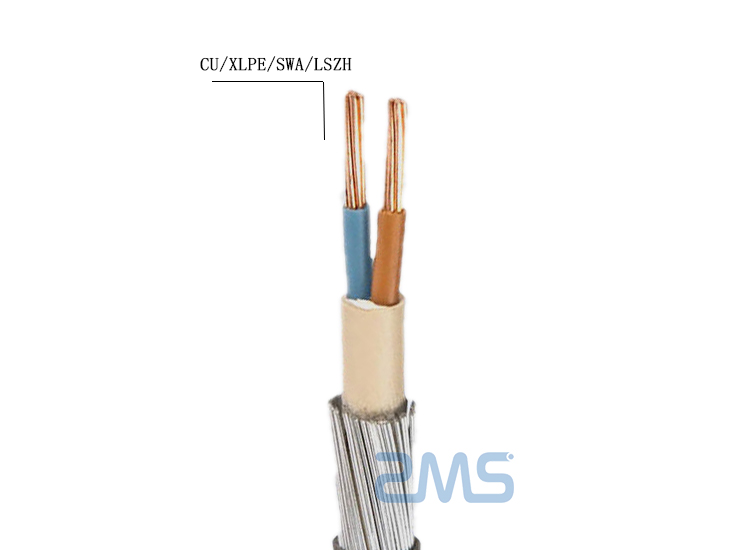

LSZH cables, known as Low Smoke Halogen Free (LSZH) cables, include PVC single-core AWA armoring and XLPE multi-core SWA armoring, which are commonly designed for use as auxiliary power cables in power grids and in a variety of environments. The armoring means that they can be buried directly in the ground to prevent accidental impact and damage.

Common Models: Basic design to BS 8573:2012.

Get a Free Quotation

ZMS LSZH Cable Types and Specifications

ZMS cables provide comprehensive LSZH sheathed cables, which are commonly used in fixed installations, such as wiring in buildings. Used in applications where fire and smoke emissions can pose a potential threat to human health or important equipment.

300/500V XLPE insulated, LSZH sheathed power cable (single core)

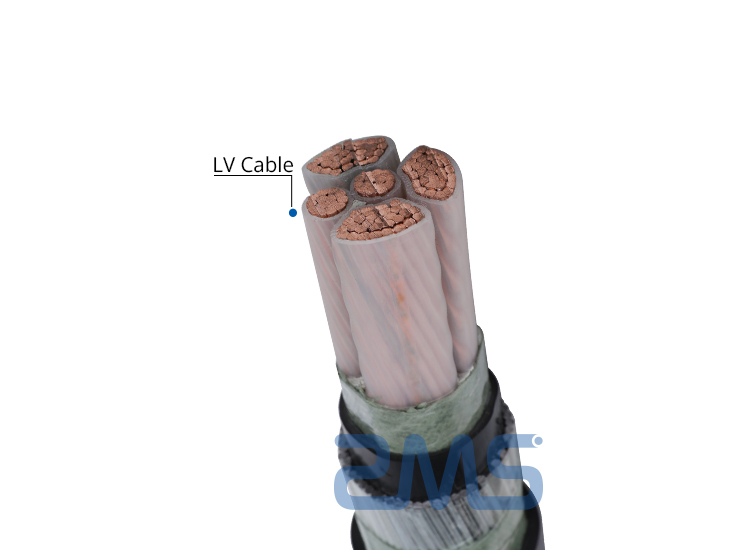

LV XLPE Insulated LSZH Sheathed Control Cable

Conductor: Plain annealed copper, multi-stranded to IEC (EN) 60228 class 2.
Sheath: Thermoplastic LSZH compound, BS (7655-6.1 standard (LTS3 type (thermoset LSZH compound, BS 7655-2.6 standard SW2-SW4 also available).
Flame retardancy (single vertical cable test): EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*. din vde 0482-265-2-1*; nbn c 30-0004 (cat.

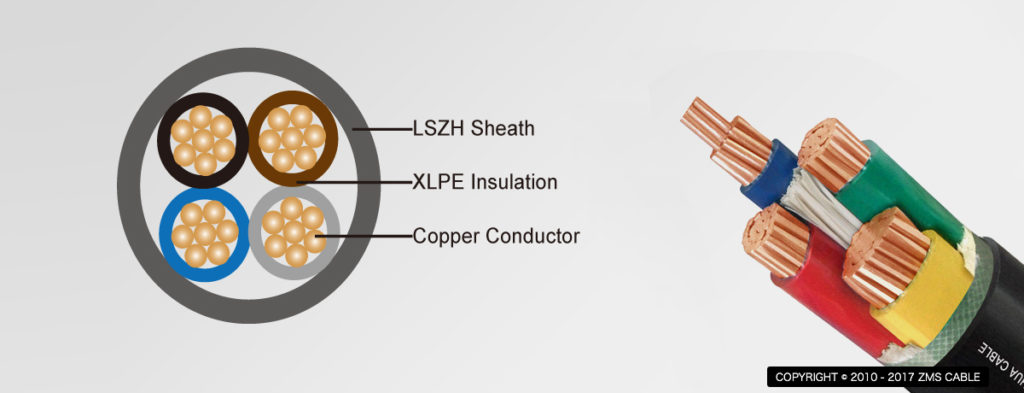

600/1000V XLPE insulated, LSZH jacket, shielded power cable (4 cores)

LV XLPE LSZH Jacket Shielded Control Cable 4 Cores

LSZH cables in this version significantly reduce electromagnetic noise interference, especially in variable speed drive (VSD) applications and between fixed conductors during production. Shielding adjacent conductors to a conductivity of 1/10, this range of VSD cables effectively suppresses radiation and carries RF emissions.

Flame retardancy (single vertical cable test): EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*. din vde 0482-265-2-1*; nbn c 30-0004 (cat.

Flame Retardant Total Shielded Instrumentation Cable (Multi-Core)

Flame Retardant Total Shielded Instrumentation Cable (Multi-Core)

LSZH flame retardant series cables are usually used for indoor installations and in humid places. In the industrial production process of communication, data and sound transmission signals and services, also used for interconnecting electrical equipment and instruments, LSZH sheathing can reduce the emission of toxic fumes and smoke.

Flame retardancy (single vertical cable test): EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*. din vde 0482-265-2-1*; nbn c 30-0004 (cat.

Tightly wrapped buffer type LSZH flame retardant fiber optic cable

Tightly Wrapped Buffer Type LSZH Flame Retardant Fiber Cable

Tightly wrapped, buffered LSZH flame retardant fiber optic cables are used for connections between patch panels and between patch panels and terminal equipment in continuous fire environments. Suitable for a variety of indoor and outdoor applications, including conduit cabling between buildings and lift shaft cabling within buildings.

Non-toxic hazardous gas: NES 02-713; NF C 20-454

Physical & Thermal Properties

Maximum temperature range during operation (XLPE): 90 °C.
Maximum short circuit temperature (5 seconds): 250 °C.
Minimum bending radius:
Circular Copper Conductors(up to 25mm2): 4 x Overall Diameter.
Circular Copper Conductors(above 25mm2): 6 x Overall Diameter.
Shaped Copper Conductors: 8 x Overall Diameter.

Flame Retardance (Single Vertical Wire Test)

BS EN 60332-1-2:2004

Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)

BS EN 60332-3-24:2009 (cat. C)

Halogen Free

BS EN 50267-2-1

Minimum Smoke Emission

BS EN 61034-2

Spark Test

BS EN 62230

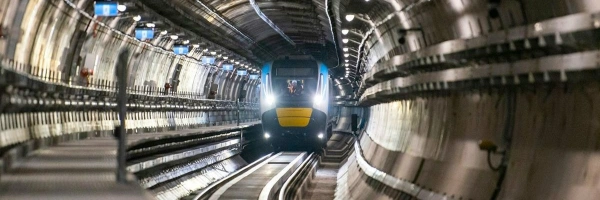

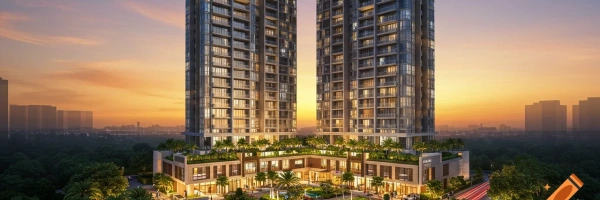

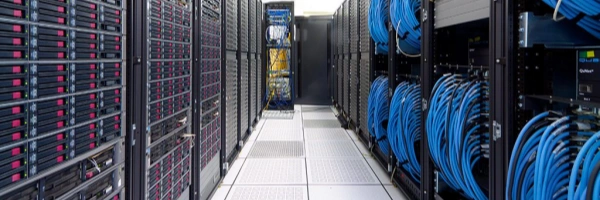

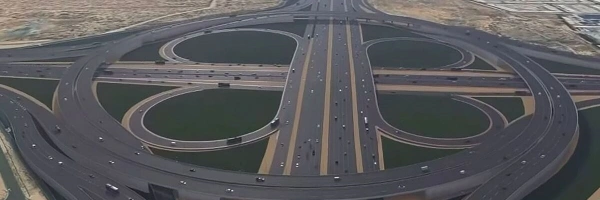

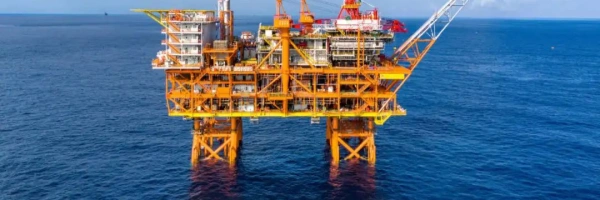

LSZH Cable Application

Application of Low Smoke Halogen Free Cables

Where are LSZH cables used?

LSZH cables differ from cables made of PVC and other compounds in that their cable insulation is made of a special material best suited for public and high-grade places. When they catch fire, they produce large amounts of thick black smoke and toxic gases. However, because LSZH instrumentation cables are made of thermoplastic materials, they produce only small amounts of smoke and toxic gases and do not contain acid. It makes it easier for people to escape from a fire or hazardous area. For this reason, they are usually installed indoors, e.g. in public areas, dangerous other areas, or poorly ventilated environments.

Cooperation with ZMS

ZMS supplied low smoke halogen free cables for a local shopping mall project in the Philippines.

ZMS Supplies LSZH Cables for Philippine Project

N2XH, 3Core, 2.5mm2, N2XH, 5Core, 2.5mm2, N2XH, 5Core, 4mm2, N2XH, 5Core, 25mm2, N2XCH, 4×185/95mm2, NHXH, 5Core, 2.5mm2

Total: 9500m

ZMS is committed to high quality, strict compliance with specifications, and successful delivery within 14 days of confirmed receipt of deposit and technical specifications.

Customization Available from ZMS

In addition to standard LSZH cable products, we can also customize LSZH cables for you based on your specific application needs. Our custom cable solutions can be developed and designed around a variety of parameters and manufacturing variants. Include:
Voltage Level: 600/1000V, etc.
Number of Core: 1, 2, 3, 4 core
Conductor: Annealed copper conductor.
Insulation: XLPE type, HEPR type, or cross-linked polyolefin material type EI 5.
Inner Covering Option: The laid-up cores may be covered by an optional extruded inner covering or separating tape. It shall be possible to separate the cores easily.
Outer Sheath: Thermoplastic LSZH type LTS 4 according to BS 7655-6.1.
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent, and anti-termite properties can be offered as options.

Custom Low Smoke Halogen Free Cable Details
Get a Free Quotation

Service of ZMS Company

Over Productions Service: ZMS has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.

Quality Certification Services: ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.

Profession Customer Service: ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.

Delivery And Shipping Services: While we at ZMS provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.

Packaging of ZMS: ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
