MV-Underground Power Cable

Introduction​​

MV-power cable

ZMS cable manufacturer as a professional medium voltage underground power cable supplier. Our standard medium voltage underground transmission line composition includes single and triple core copper or aluminum conductor cables. Also including polyvinyl chloride (PVC), crosslinked polyethylene (XLPE), polyethylene (PE), ethylene propylene rubber (EPR), and Low-pressure halogen-free (LSZH) jacket performance. As well as steel wire armor or aluminum wire armor to increase mechanical strength and provide mechanical protection.

Do you want to know more product details?

Leave A Message

Custom Medium Voltage Cable

In addition to standard MV cable products, we can also customize MV cables for you based on your specific application needs. Our custom cable solutions can be developed and designed around a variety of parameters and manufacturing variants. Include:
Cross-Sectional Area: usually 35mm2 to 630mm2
Number of Cores: single core or triple core.
Conductor: solid or stranded aluminum conductor, stranded copper conductor.
Insulation: XLPE (usually used as a medium voltage cable) or EPR (because it is relatively flexible, it is often used in marine or marine applications).
Metal Shield: concentric copper wire screen, aluminum foil laminate, extruded lead alloy sheath.
Armoured: Aluminum tape armor is mainly used for single-core cables, and galvanized steel wire armor is mainly used for multi-core cables.
Outer Sheath: We can tailor it to specific requirements. Cable jacket materials include PVC, EPR, LSZH, etc, to meet different environmental requirements.

Description of ZMS Cable Products

There is always some ambiguity in the range of voltage levels for medium voltage underground transmission cable. It depends on the country, as well as the standards-appointed bodies. We consider transmission lines with medium voltage levels above 3KV and below 35KV.

Copper XLPE Insulation Power Cable

Conductor: Bare copper wire for round bare wire
Insulation: Cross-linked polyethylene (XLPE), PE compound DIX8 to HD 620.1 conductor insulation
Shield: braided with one or two spirally wound copper wires
Sheath: PVC, composite DMV6 to HD 620.1
Sheath Color: Red

Voltages Level
U0/U 6/10 kV, 12/20 kV, 18/30 kV
Temperature Range
During installation up to -5°C/+23°F
Operating Temperature
Max. +90°C/+194°F
Short Circuit Temperature
+250°C/+482°F (short circuit duration up to 5 sec.)

Product 1 --- N2XSY Power Cable

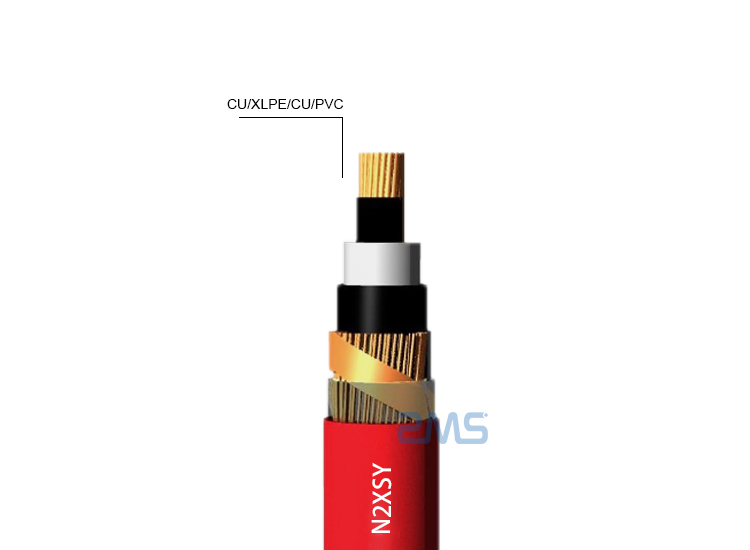

N2XSY-power-cable
N2XSY-cable-Technical-characteristics

Do you want to know more product details?

Leave A Message

Conductor: Plain annealed copper. Copper conductors shall be stranded.
Conductor Screen: Extruded layer of semi-conducting cross-linkable compound is applied over the conductor and shall cover the surface completely. The minimum thickness is 0.3mm and the maximum resistivity shall not exceed 500 Ohm-m at 90°C.
Insulation: Insulation is of cross-linked polyethylene compound XLPE.
Sheath: XLPE / PVC / LSZH

Voltages Level
U0/U: 3.8/6.6kV, 6.35/11kV, 8.7/15kV, 12.7/22kV, 19/33kV
Physical Properties
Working temperature: up to 90 ° C
Temperature range: -5 ° C (PVC or LSZH sheath); -20 ° C (PE sheath) Short circuit temperature: 250 ° C (short circuit duration up to 5 seconds) Bending radius: 12 x OD

Product 2 --- Copper XLPE / PVC Insulated Cable

MV-cable
three-core-power-cable-Insulation-Thickness

Do you want to know more product details?

Leave A Message

Medium Voltage Aluminum Underground Cable

Conductor: Plain annealed aluminium complying with IEC 60228/BS 6360. Aluminium conductors shall be either solid or stranded.
Conductor Screen: Extruded layer of semi-conducting cross-linkable compound is applied over the conductor and shall cover the surface completely. The minimum thickness is 0.3mm and the maximum resistivity shall not exceed 500 Ohm-m at 90°C.
Insulation: Insulation is of cross-linked polyethylene compound XLPE.
Sheath: XLPE / PVC / LSZH

Voltages Level
U0/U: 3.8/6.6kV, 6.35/11kV, 8.7/15kV, 12.7/22kV, 19/33kV
Physical Properties
Working temperature: up to 90 ° C
Temperature range: -5 ° C (PVC or LSZH sheath); -20 ° C (PE sheath) Short circuit temperature: 250 ° C (short circuit duration up to 5 seconds) Bending radius: 12 x OD

Product 3 --- Aluminum XLPE / PVC Insulated Cable

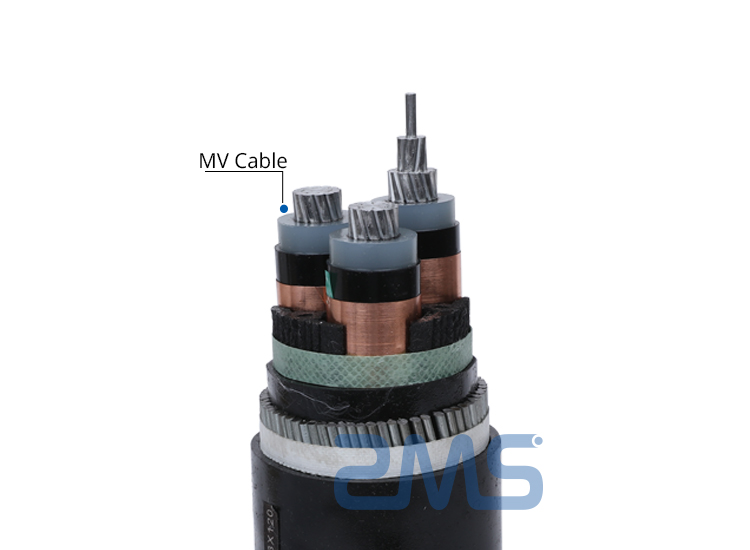

MV-AL-Power-cable
Dimensional Data
Power-cable-Dimensional-Data
Electrical Data

Do you want to know more product details?

Leave A Message

Product Structure Composition

XLPE insulated PVC sheathed power cable (XLPE / PVC Cable)
XLPE insulated steel tape armored PVC Sheathed power cable (XLPE / STA / PVC Cable)
XLPE insulated steel wire armored PVC sheathed power cable (XLPE / SWA / PVC cable)
Flame retardant XLPE insulated PVC sheathed power cable (FR / XLPE / PVC cable)
Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR / XLPE / STA / PVC cable)
Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR / XLPE / SWA / PVC cable
