Fiber Optic Distribution Box
The optical fiber distribution box is the client wiring equipment in the FTTH optical network. It is mainly used for the end fusion, splitting, wiring output and other functions of the optical transmission terminal. It can effectively terminate, protect and manage the optic fiber cable. It’s necessary equipment during network transmission.
ZMS fiber optic terminal box is one of our main accessories products, with high-quality sealing and stability. It is reasonably priced, cost-effective and advanced in structure. We can also customize fiber terminal box according to your engineering needs.
- 8 -12 Port Optical Fiber Distribution Box
- 16 Port Optical Fiber Distribution Box
- 24/48/64 Port Optical Fiber Distribution Box
- Custom Optical Fiber Distribution Box

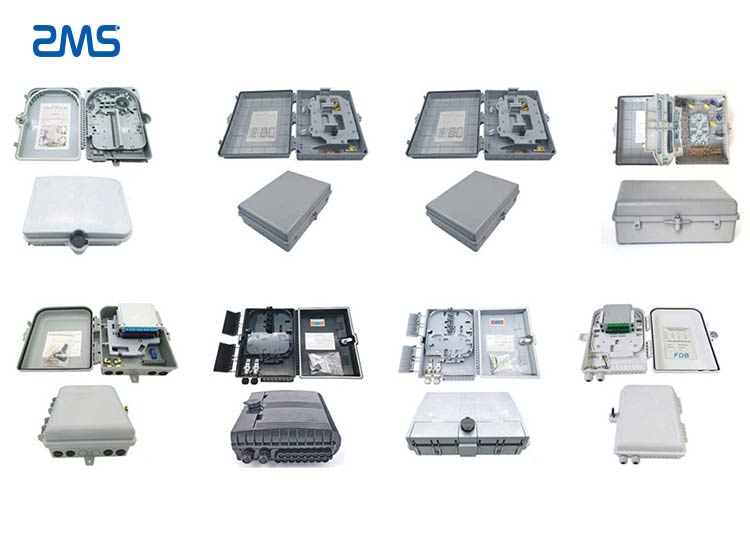

Fiber Optic Distribution Box Products Type
Fiber optic distribution box is an interface device used to connect the backbone optical cable and the distribution optical cable outdoors, in the corridor or indoors. Fiber optic distribution box must be able to work reliably in the specified environment, and its box can withstand a vertical pressure of not more than 500N. Provide solid protection and management for FTTH and FTTx network construction.

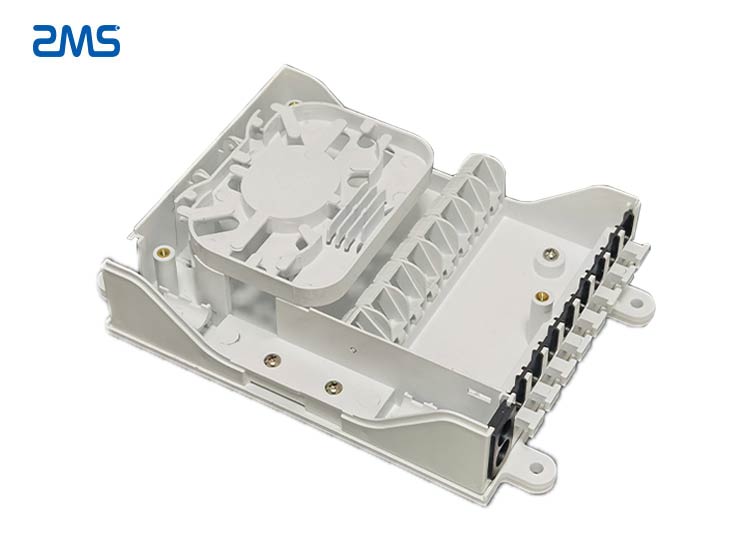

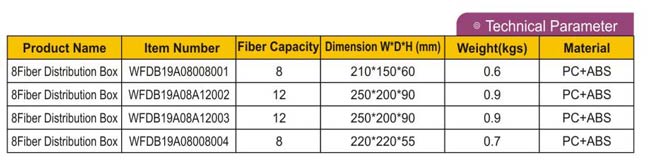

8-12 Port Fiber Optic Distribution Box
Fiber distribution box composition: box bottom, box cover, fiber optic cable fixing press block, flip plate, leather cable fixing press block, cable inlet seal, leather cable seal, shell seal, lock and other accessories, etc.

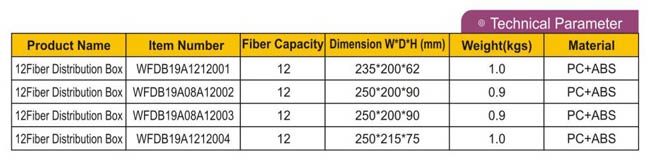

12 Port Fiber Optic Distribution Box
Fiber distribution box composition: box bottom, box cover, fiber optic cable fixing plate, installation back plate, splice tray support, adapter support, cable inlet sealing device, cable sealing device, shell seal, press buckle, splice tray and other accessories, etc. .

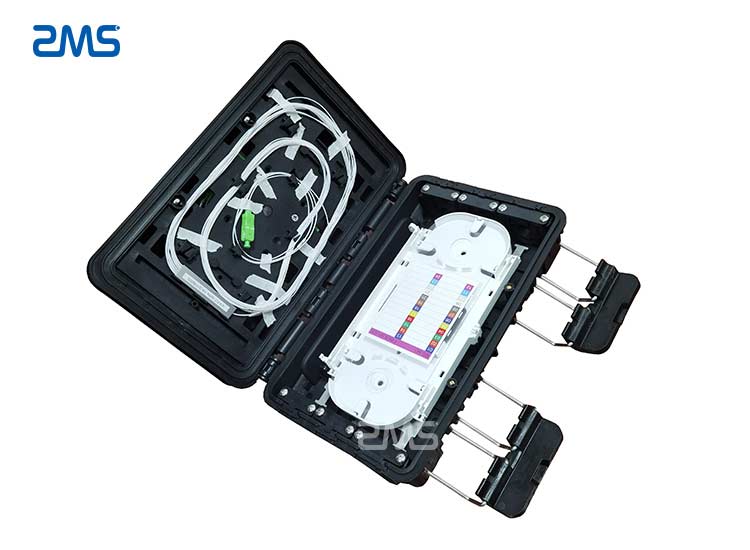

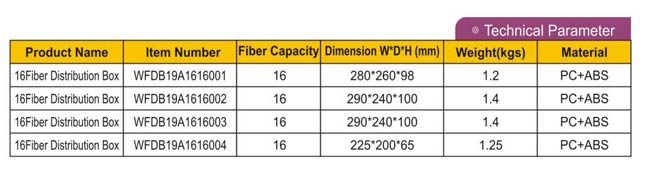

16 Port Fiber Optic Distribution Box
Fiber distribution box composition: box bottom, box cover, fiber optic cable fixing plate, installation back plate, splice tray support, adapter support, cable inlet sealing device, cable sealing device, shell seal, press buckle, splice tray and other accessories, etc. .

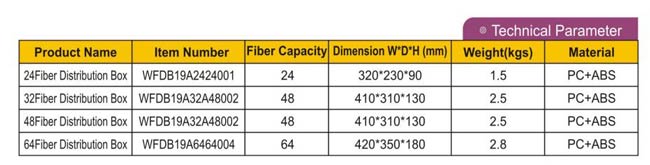

24 / 48 / 64 Port Fiber Distribution Box
Fiber distribution box composition: box bottom, box cover, optical cable fixing frame, flip plate and bracket, hose clamp, waterproof joint, leather cable seal, shell seal, press buckle, lock and other accessories, etc.
More Types of Optical Fiber Distribution Box

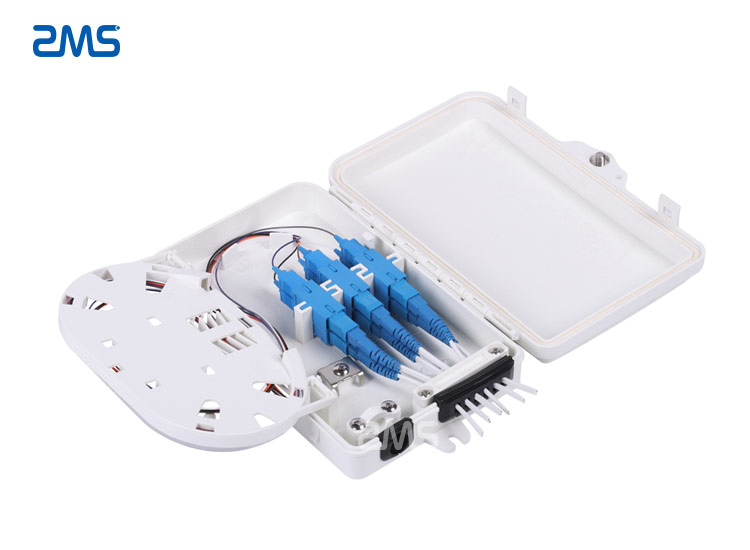

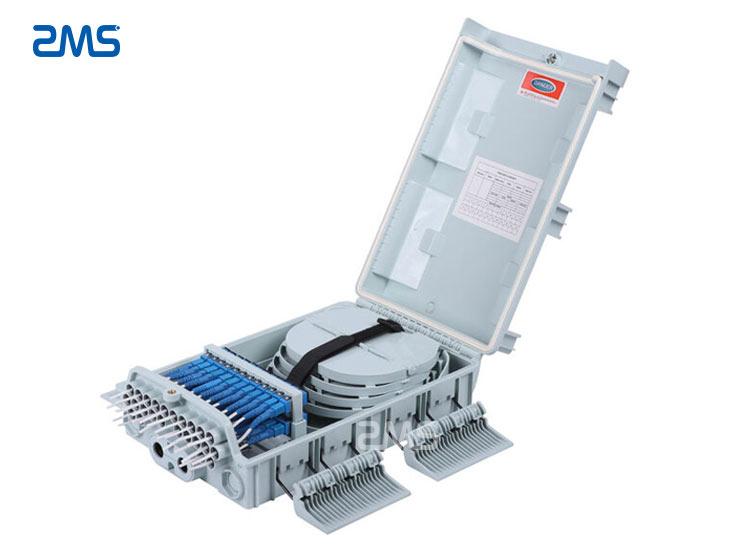

6 Port Splitter Box FTB

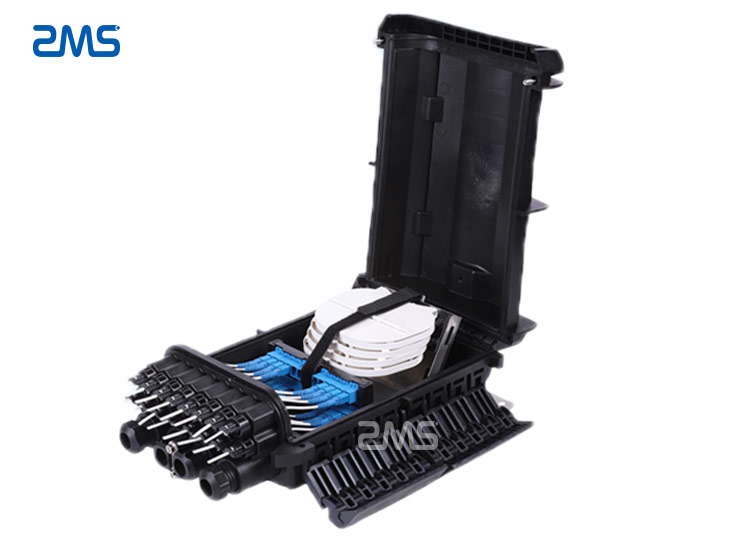

4 in 16 Out Fiber Distribution Box

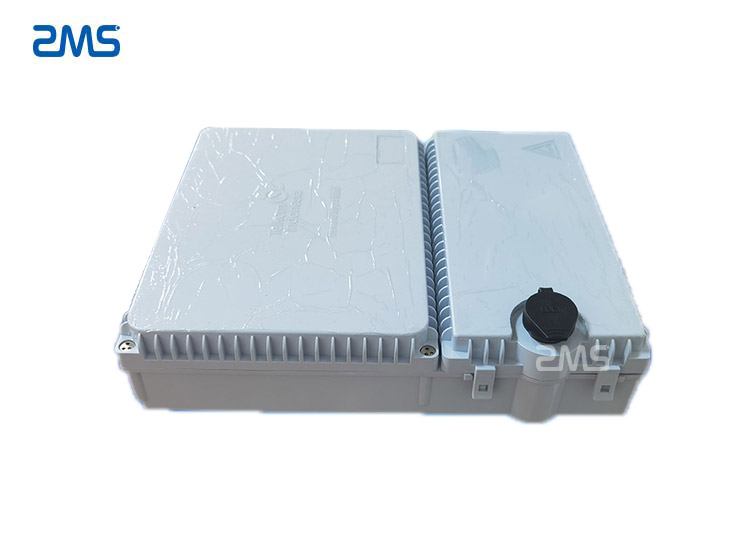

16 Port Indonesia Fiber Distribution Box

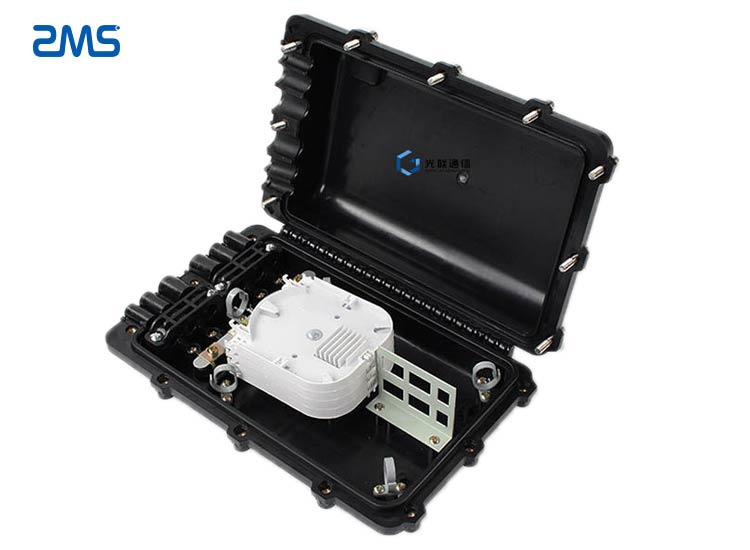

48 Port Fiber Distribution Box

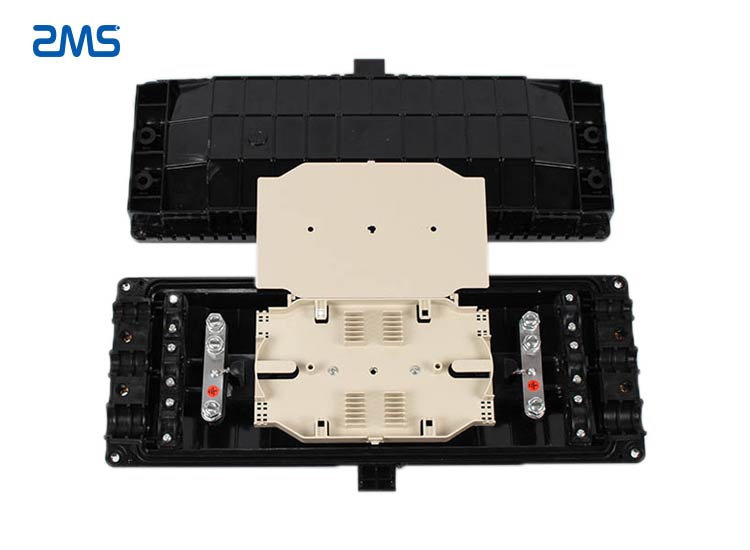

96 Port Fiber Distribution Box

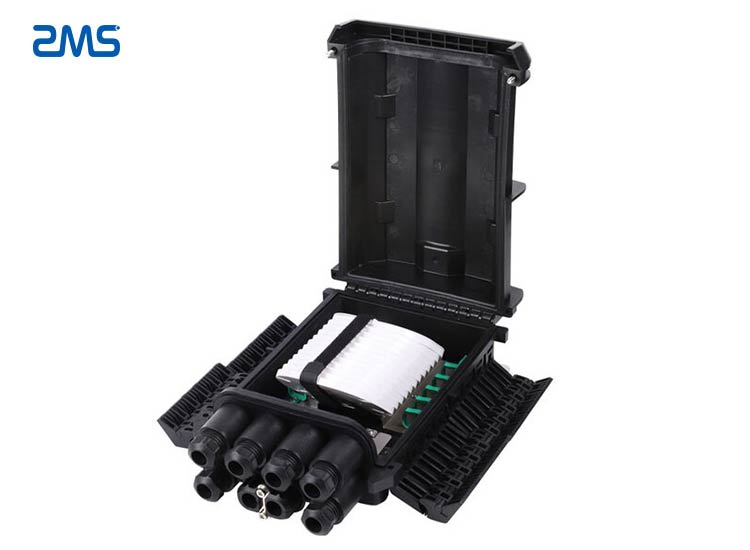

144 Port Fiber Distribution Box
Advantages of Optical Fiber Distribution Box
- The shell is made of ABS+PC high-quality engineering plastics, with good strength.
- Waterproof design, suitable for indoor and outdoor overhead use in natural environments.
- The box body adopts a special-shaped lock structure, the box body is easy to open and close, and it is safer to use.
- Splicing tray flip-type double-layer design scheme, easy to install and maintain, splicing fiber and split fiber are completely separated, and the layout is more reasonable.
- There should be a clear “line sequence mark” (if necessary, the junction and branch road numbers should be clearly marked).
- The opening angle of the door is not less than 120°.
- The product adopts a multi-layer design, and the configuration can be selected according to the actual use of the function, thereby reducing the cost.
The optical fiber distribution box can be used as an optical cable terminal box, up to 24 SC adapters can be installed, or as an optical splitter box (using a micro-module optical splitter). It is an outdoor structure with anti-impact and waterproof functions, and the protection level is IP68. There can be at most two fiber optic cable input and outlets (the large diameter of the fiber optic cable is 15mm) and 24 fiber optic cables (leather cable) output ports. It can be wall-mounted or pole-mounted, and the installation is extremely simple. The internal adapter is plug-in installation. No additional special tools are needed, and the plug-in is easy. The front and back sides of the internal flap of its structure are space for cable storage, welding and wiring. If necessary, the micro-module optical splitter can be placed on the front or back of the flap.
Transport and Storage
- Avoid rain, sun and squeeze during transportation.
- The product should be stored in a warehouse, and must be protected from moisture, sun, and fire. The storage temperature should be within the range of -25℃～+40℃.
Note: Special parts or parts that are easily damaged during transportation need to be carefully protected.
