BS 5467 Cable

BS5467 Cable

BS 5467 cables are widely used in the UK as power cables, by British Standards for the designation of cable products. They are hard-wearing and suitable for indoor, underground (buried directly in well-drained soil or embedded in concrete), and outdoor applications, requiring no additional protection due to the mechanical protection provided by their armor and the UV-stabilised and waterproof nature of their sheaths.
ZMS Cables is a leading manufacturer and supplier of high-quality cables for a wide range of applications. We supply BASEC-approved low-voltage power cables manufactured to British Standard BS5467 and BS6724. Our state-of-the-art manufacturing facilities and a team of skilled engineers and technicians enable us to produce cables that meet the highest standards of performance and durability.

Get a Free Quotation
BS5467 standards cable manufacturer

Product Structure

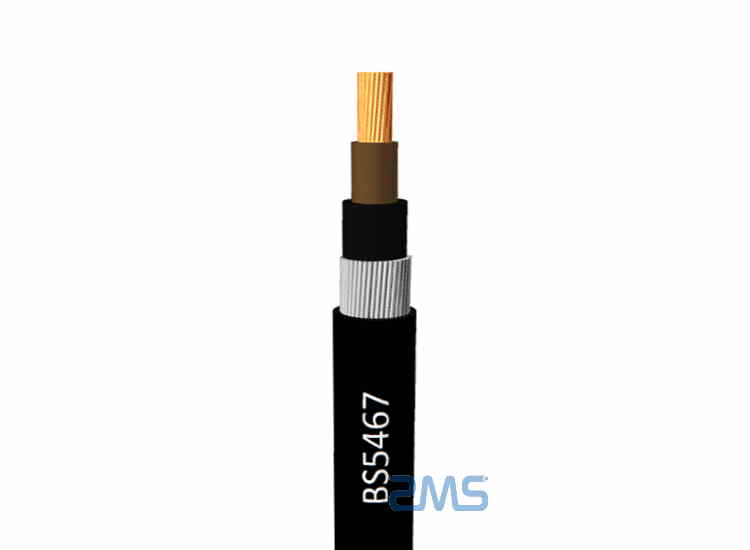

BS 5467 Armored Power Cables

Conductor: Solid aluminum or copper conductor, Class 2 multi-stranded round or fan, by BS 6360/IEC 60228.
Insulation: XLPE (cross-linked polyethylene) GP Category 8 or Ethylene Propylene Rubber GP Category 6
Color coding:
1 core: brown
2 cores: brown, blue
3 cores: brown, black and grey
4 cores: brown, black, gray and blue
5 cores: brown, black, gray, blue and green/yellow
7 to 48 cores: white with printed numbers
Lining: PVC (polyvinyl chloride)
Armor: Single core: AWA (aluminum wire armor)
Multi-core: SWA (Steel wire armored)
Outer sheath: PVC (polyvinyl chloride), or rodent and termite-resistant PVC (optional)

Technical Parameters
Rated voltage: 600/1000V
Rated temperature: 0°C to +90°C
Bending radius: 1.5mm² to 16mm²: 6 x outer diameter
25mm² and above: 8 x outer diameter
Fire resistance: IEC 60332 Part 1, BS4066 Part 1

More BS5467 Cable Information

zms cable factory

The British Standard BS5467 cable specification covers the requirements for low voltage armored cables – galvanized steel wire armored (multi-core) and non-magnetic aluminum wire armored (single core).
This includes PVC-sheathed single-core cables and multi-core cables. The cable current classes include 0.6/1kv and 1.9/3.3kv. It has thermoset insulation with a rated voltage of 600/1000V. It is intended for fixed installations in industrial wiring, main distribution, auxiliary control, and similar applications where there is a risk of mechanical damage and some form of protection is required.

APPLICATION

Single-core PVC cable with aluminum wire armor (AWA). Power and auxiliary fixed wiring cables for use in power
networks, underground, outdoor, and indoor applications, and for use in cable ducting.
