The 400Hz Aircraft Power Cable series is designed specifically for 400Hz power supply systems, primarily used for power supply to aircraft, computer systems, and radar stations. It supports various installation scenarios including direct burial, underwater, outdoor, indoor, and cable trench installations. It is certified to VDE 0295 and IEC 60228 international standards and complies with EU Low Voltage Directive 2014/35/EU, RoHS 2015/65/EU, and other regulations.
Aircraft Power Cable Types
There are many cable models available for 400Hz power supply system designs. ZMS lists several common models. If you require quotes for other models, such as multi-core power cords, armored cables, grounding cables, control cables, or custom colors, please feel free to contact us!

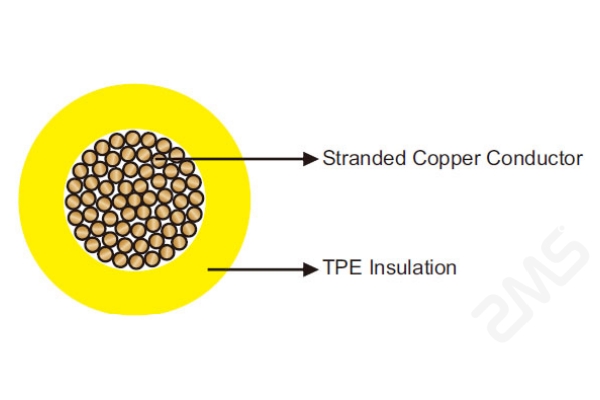

400Hz Single Core Aircraft Cable
Its single-core structure is dedicated to a single-circuit power supply. It has a simple structure, light weight, and is suitable for the individual power supply needs of branch lines and independent equipment in airport power supply systems. It can be flexibly combined to achieve a multi-phase power supply.
Structure
Conductor: Category 5 stranded copper conductor, balancing conductivity and ease of installation;
Insulation: Thermoplastic elastomer (TPE) insulation, lightweight and with excellent insulation performance;
Sheath: Yellow polyurethane sheath, anti-aging and corrosion resistant, suitable for various installation environments.
Core Characteristics
Bending Radius: Static 6 times outer diameter, dynamic 7 times outer diameter, meeting the installation requirements of single-core cables;
Specifications: Nominal cross-sectional area 35mm², 50mm², 70mm², 120mm²; Nominal outer diameter 11.5mm-23.0mm;
Unit Weight: Approximately 430kg/km-1545kg/km, lightweight, convenient for transportation and installation.

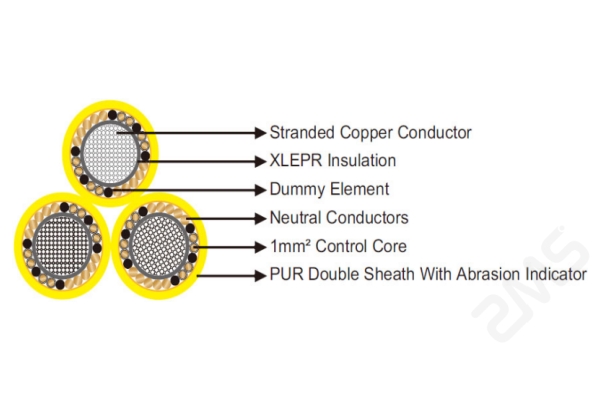

400Hz Three-cores Aircraft Cable
Its three-core structure is designed specifically for the needs of a 400Hz three-phase power supply and multi-channel control. The addition of concentric copper wire metal shielding enhances anti-interference capabilities and makes it suitable for powering precision airport equipment with higher signal stability requirements.
Structure
Conductor: Category 6 stranded copper conductor, high transmission efficiency;
Insulation: Cross-linked ethylene propylene rubber (XLPE) insulation, reliable performance;
Control Core: Multi-channel control core for interference-resistant signal transmission;
Shielding Layer: Concentric copper wire metal shielding layer, isolating electromagnetic interference;
Sheath: Polyurethane (PUR) sheath with wear indicator for real-time sheath status monitoring;
Cable Core Assembly: The control core, neutral conductor, and filler are arranged around the phase conductors, providing a compact structure and strong stability.
Core Characteristics
Bending Radius: Static 3 times outer diameter, dynamic 4 times outer diameter, optimal laying flexibility;
Specifications: Nominal cross-sectional area 35mm², 70mm²; Nominal cross-sectional area of shielding layer 20mm², 25mm² respectively; Nominal outer diameter 44.1mm-47.8mm;
Unit Weight: 2790kg/km-3560kg/km.

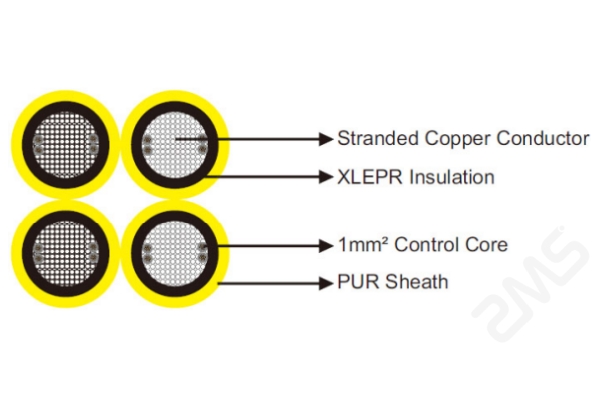

400Hz Four-cores Aircraft Cable
Its four-core structure enables a multi-core integrated control solution for 400Hz airport power supply systems. It is well-suited to the complex power supply and control needs of equipment such as aircraft and radar stations, with strong compatibility for multi-scenario deployment.
Structure
Conductor: Uses Category 5/6 stranded copper conductors, ensuring stable conductivity;
Insulation: Cross-linked ethylene propylene rubber (XLPE) insulation, providing excellent temperature and weather resistance;
Control Core: Equipped with 4 channels of 1mm² stranded copper conductors, ensuring stable signal transmission;
Sheath: Polyurethane (PUR) sheath, wear-resistant and corrosion-resistant.
Core Characteristics
Bending Radius: Static 4 times outer diameter, dynamic 5 times outer diameter, offering high installation flexibility;
Specifications: Nominal cross-sectional area 35mm², 50mm², 70mm², 120mm²; Nominal outer diameter 33.0mm-56.0mm;
Unit Weight: 2600kg/km-7400kg/km.
