Cable Terminations Joints have been a hot seller for ZMS cables. ZMS factory has several sets of large casting equipment and production lines and has established an international advanced testing equipment center. We have advanced accessories production equipment and years of manufacturing experience in the cable industry.
Types of HV GIS / Cold Heat Shrink Terminations and Joints
- Integrate waterproofing, stress control, shielding and insulation.
- Has good electrical and mechanical properties.
- Can be used for a long time under harsh environmental conditions.
- It has the advantages of light weight and convenient installation.
- Cable termination kits are widely used in power, petrochemical, metallurgy, railway ports and construction fields.
Types of Cable Termination

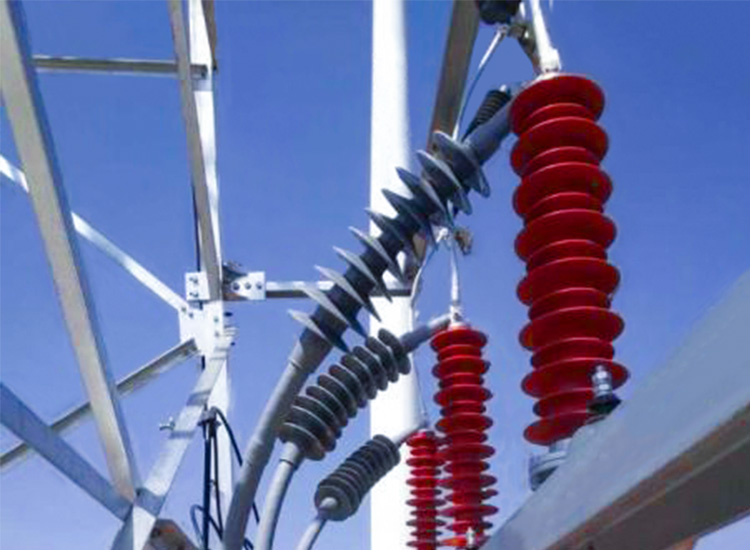

- The cold shrink termination fittings are made of highly elastic special grease silicone rubber.
- Cold shrink termination fittings do not need to be heated by flames or special tools. Just we pull out the plastic rope from the silicone rubber tube, the silicone rubber will shrink in the desired position.
- The cold shrinkable cable termination has reliable insulation, ensuring excellent insulation and high resilience. At the same time, the triple air tightness sealing technology is used to ensure the superior air tightness of the product.
- The product has a series of exceptional properties such as anti-pollution, long service life, hydrophobicity and cold resistance.
Nominal Cross Section: 25~480mm²
Rated Voltage: 1kv~35kv

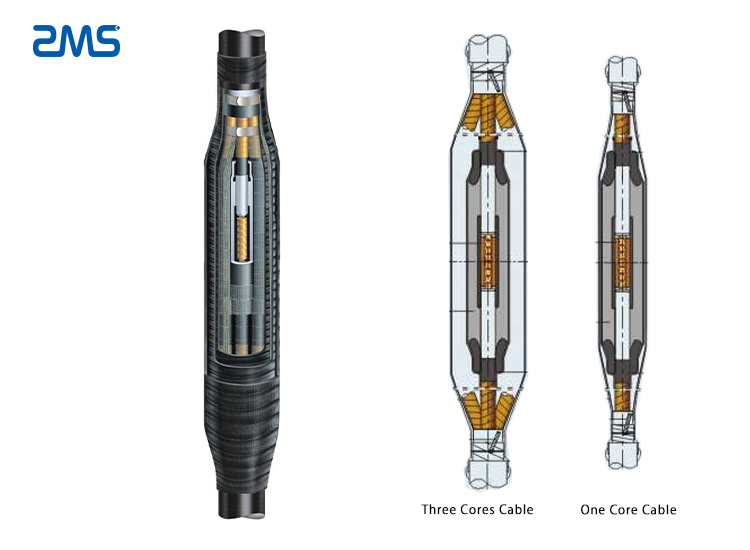

- Insulated cold shrink cable joint kits are used to reduce the induced voltage and circulating current on the metal sheath of single-core or multicore cables.
- It is suitable for connecting polymer (XLPE/ERP) medium voltage cables or low voltage cables together. Cold shrink joints are compatible with copper or aluminum phase conductors.
- The cold shrink technology through the design and installation process does not require heating or the use of open flames, thus providing more electrical safety advantages.
- The outer sheath includes: waterproof tape, armored tape type, heat-shrinkable type, cast shell type, waterproof tape, armored tape type are recommended.
Rated Voltage: 1kv~36kv
Nominal Cross Section: 25~800mm²

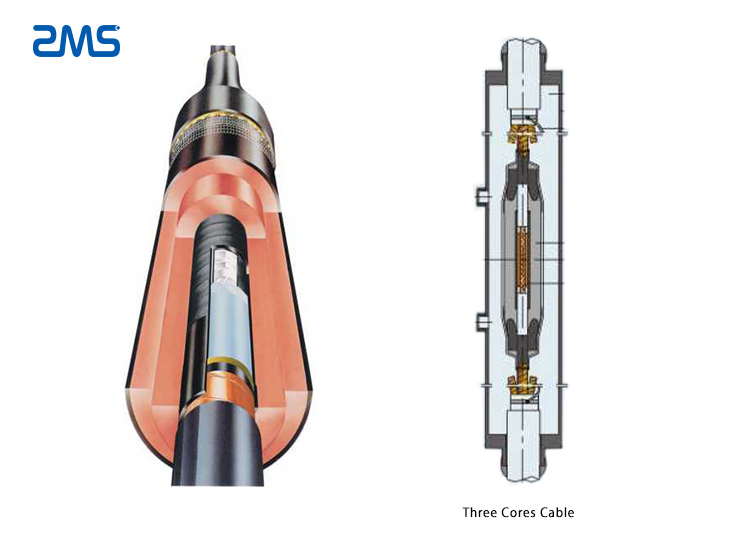

- Heat shrink termination accessories are usually made of rubber and plastic composite materials. It is cross-linked by high-energy radiation, expanded to the required size, and then cooled and formed.
- During installation, at a certain temperature, according to the “elastic memory” of the polymer, it will shrink to its original shape after heating.
- You can clamp and seal the cut part of the cable to ensure the insulation and sealing performance of the entire heat shrinkable termination fitting product.
- To ensure the insulation and sealing performance of the entire product, the cutting part of the cable can be tightened and sealed.
Rated Voltage: 1kv~36kv
Nominal Cross Section: 25~500mm²
- Heat shrink cable terminal joint kits are widely used on the terminals of 35KV and below cross-linked cables and oil-immersed cables.
- Our products are compact in structure, small, easy to install and reliable in operation. Currently, it is the most convenient and safest branch structure on the market.
- Each phase of the terminal joint is insulated and sealed by heat shrinkage, and is equipped with a metal sheath to protect the joint from external force damage.
- Heat shrinkable joints are widely used in electric power, petrochemical, metallurgy, railway ports and construction fields.
Rated Voltage: 1kv~36kv
Nominal Cross Section: 25~800mm²

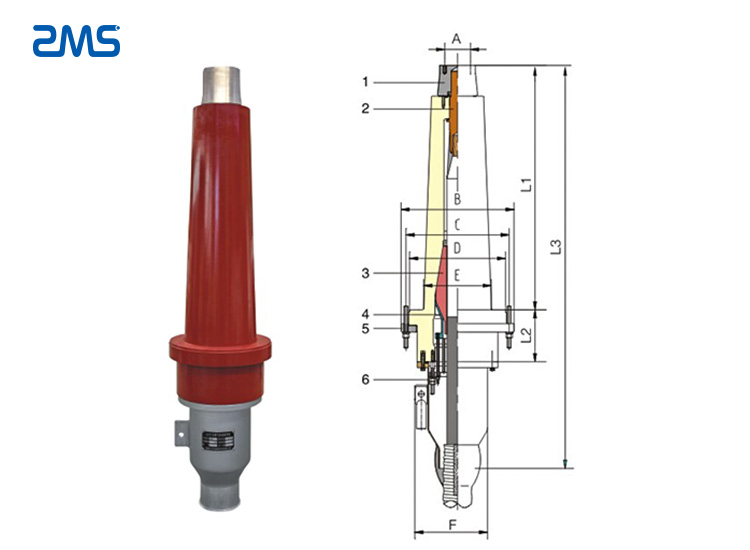

GIS Termination(Assembly)
- High voltage GIS termination (Assembly type) is made of imported EPDM.
- The surface pressure between the stress cone and the epoxy bushing is maintained by a spring device (stress cone bracket), the pressure on the interface is permanently maintained during operation.
- The advantage of this structure is that it can overcome the shortcomings or defects of aging materials.
Rated Voltage: 48kv~220kv
Nominal Cross Section: 95~3000mm²

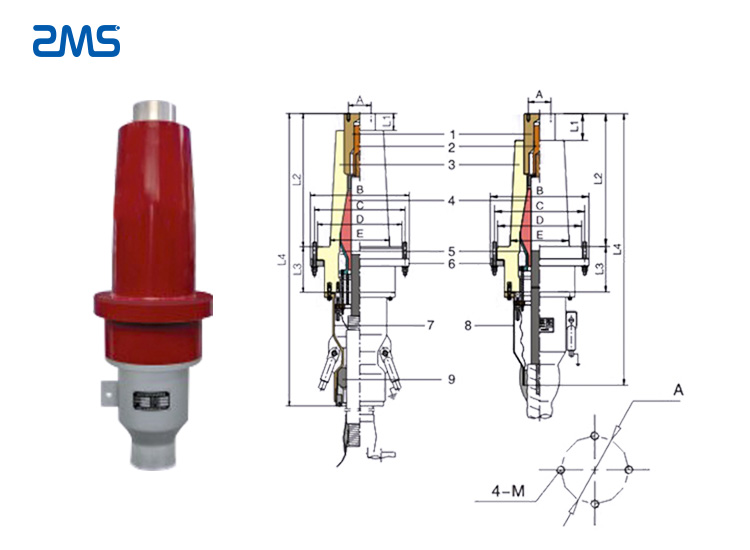

GIS Termination(Plug-in type)
- High voltage GIS termination (Plug-in type) is made of imported EPDM.
- The surface pressure between the stress cone and the epoxy bushing is maintained by a spring device (stress cone bracket), the pressure on the interface is permanently maintained during operation.
- The advantage of this structure is that it can overcome the shortcomings or defects of aging materials.
Rated Voltage: 48kv~220kv
Nominal Cross Section: 95~3000mm²
Note: The above parameters are for reference only. The specific size depends on the cable or project requirements for selection. Inquire Us Now.
The Advantages of Cable Terminations Kits
Our main products are 1-35kV cold shrink and heat shrink outdoor/indoor cable terminations and joints, GIS electrical terminations, ceramic type, composite type, pre-molded silicone rubber type cable terminations, etc. We work hard for global access to electricity. Only high-quality cables and cable accessories have the value of production!
Cold Shrink Terminations
The cold shrinkable power cable termination has the characteristics of good insulation, electrical corrosion resistance, leakage resistance, aging resistance and heat resistance (-60℃- +200℃), high elasticity, and good waterproof and leakproof performance. Cold shrink accessories can be widely used in various areas, especially high altitude areas, cold weather and humidity areas.
Cold Shrink Cable Joints
Cold shrink cable joints adopts advanced cold shrink technology. No need to use open flame and special tools during installation, just gently extract the core rope. The cold shrinkable cable termination is more time-saving, labor-saving and space-saving.
Heat Shrink Terminations
Compared with traditional electrical termination accessories, the heat shrinkable cable terminations have the advantages of small size, light weight, reliable operation and low price.
Heat Shrink Cable Joints
The product conforms to the GB11033 standard, the long-term use temperature range is -55℃~105℃, and the shrinkage temperature is 110℃~140℃.
GIS Termination(Assembly)
The GIS termination (Assembly type) is fully dry and oil-free, eliminating the problem of leakage. At the same time, it is small in size, light in weight and easy to install.
GIS Termination(Plug-in type)
The GIS termination (Plug-in type) is also fully dry and oil-free, eliminating the problem of leakage. The connection between the underground cable termination and the cable is plug-in, which is easy to install and maintain. This product is suitable for the link between the power cord and the transformer. It eliminates oil (oil bushing) or oil (gas bushing) and saves a lot of space.
The Function of Cable Termination Kits
- The function of the power cable termination joints is to be assembled to the first and end of the power cable transmission line. It can complete the connection with other electrical equipment.
- Common types of cable termination include outdoor termination joints, indoor termination joints, elbow terminations, etc.
- The power cable termination jointing kits can evenly distribute the electric field at the end of the cable and realize the effective control of the electric stress.
- You can choose according to the actual application, then taking appropriate measures to make the electric field distribution and electric field strength in the best state can improve the reliability of cable operation.
About ZMS Cable
- ZMS Cable Group Co., Ltd. is a leading manufacturer and supplier of power cables and cable accessories and heat shrinkable products in global. ZMS company was established in 1990 and now has more than 30 years of development history.
- We always adhere to the competitive strategy of differentiation, internationalization and self-development. We aim to become a leader in the global cable and cable accessories industry. Our products have obtained ISO9001, ISO14001, UL, CSA and KEMA and other international certifications.
- ZMS company relies on excellent product quality, meticulous customer service, and efficient and fast delivery capabilities. We sincerely invite you to cooperate with you to achieve excellent results.
- ZMS factory has imported several large-scale equipment and production lines of power cables and cable accessories from Germany, Hong Kong and Taiwan.
- These production lines have laid a solid foundation for our R&D and quality assurance. Our cable accessories products have a high reputation in the Philippines, UAE, Kenya and other countries and regions.
- We not only produces high-quality cable terminations, but also types of cable insulators, cable lugs, cable clamps and other cable accessories made of top materials.
