NYY Cable
NYY cables are specialized for energy supply in cable ducts, power stations, industrial and distribution boards, and customer networks. They can also be used in brick walls and concrete (non-compacted concrete). They can be installed in the open air, underground, underwater or indoors and are protected against mechanical damage. The ZMS NYY cable range includes NYY-J and NYY-O cables.
Whether you need cables for electrical, telecom, automotive, or other industries, ZMS Cables has the solution you need at a competitive price. Contact us today to learn more about our products and services.

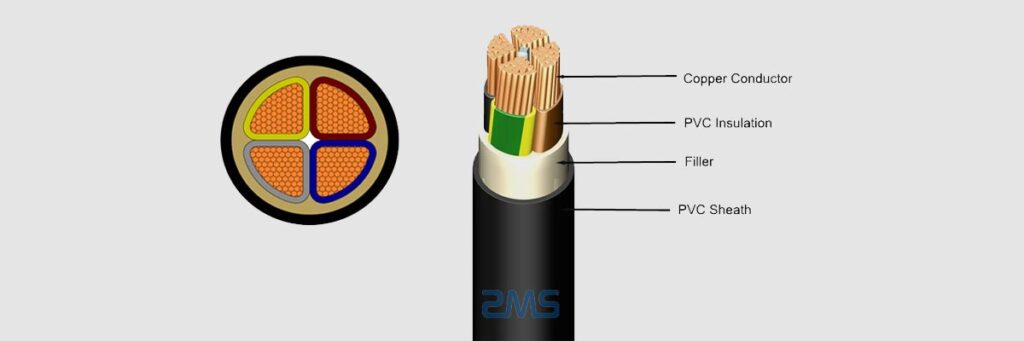

About NYY Cable Structure and Specifications
NYY Unarmoured Power Cable
Re conductor: Class 1 solid plain copper to IEC60502-1
Rm conductor: Class 2 round stranded plain copper conductor, multi-wire to BS EN 60228:2005 (previously BS6360), VDE0295, IEC 60228, CENELEC HD383
Sm conductor: Class 2 sectorial stranded plain copper conductor to BS EN 60228:2005 (previously BS6360), VDE0295, IEC 60228, CENELEC HD383
Insulation: PVC (Polyvinyl Chloride) Type YI4 to VDE0276
Filler: PVC (Polyvinyl Chloride)
Sheath: FR/PVC (Flame Retardant / Polyvinyl Chloride) to IEC60502-1
Voltage Rating: 600/1000V
Temperature Rating: Fixed: -40 to +70°C
Flexing: -5 to +50°C
Standards: IEC60502-1,Generally to VDE0276 and VDE0271
Application: Power and control cable for fixed installation( NYY ). Can be used indoors, outdoors, underground, in concrete, and in water.

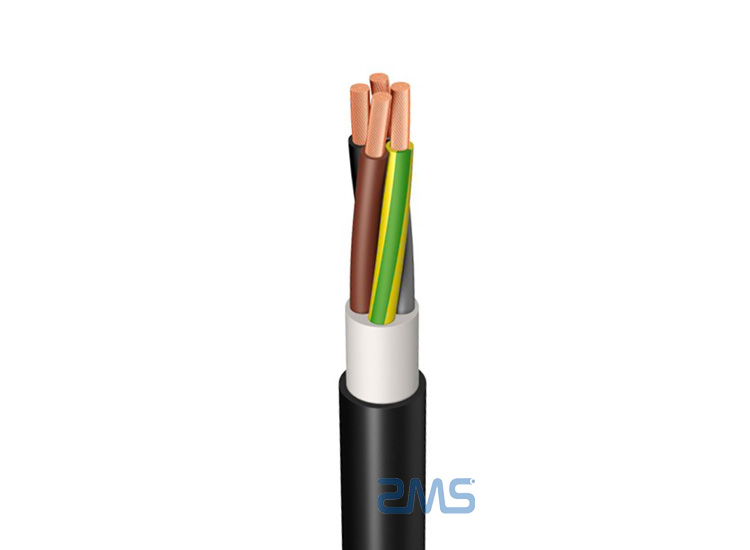

Power Cable NYY-J-O
Conductor material: bare copper
Conductor construction: class 1, from 25 sqm class
Insulation: PVC DIV 4
Sheathing material: PVC DMV 5
Color of outer sheath: black
Flame retardant: VDE 0482-332-1-2/IEC 60332-1
Maximum temperature at conductor: 70 °C
Max operating temperature fixed: 70 °C
Application: For fixed installation in buildings, in free air, in the ground, and in water.
Power Cable NYY-JZ--OZ
Conductor material: bare copper
Conductor construction: solid, class 1
Insulation: PVC DIV 4
Sheathing material: PVC DMV 5
Color of outer sheath: black
Meter mark: yes
Flame retardant: VDE 0482-332-1-2/IEC 60332-1
UV-resistant: yes
Maximum temperature at conductor: 70 °C
Max. operating temperature fixed: 70 °C
Application: For fixed installation in buildings, free air, ground, and water.
Features and Applications
Single or multi-wire conductors of plain copper wires, PVC core insulation, cores twisted concentrically, various core colors according to VDE 0293, common core sheathing, the outer sheath of PVC, standard color black, flame-retardant. NYY is used as a power cable for energy supply in static installations, indoors, outdoors, underground, in concrete, and in water where mechanical damages are not to be expected. The use of NYY cables is by VDE 0298 part 1. The current capacity is according to HD 603 S.1 and VDE 0276 part 1000. The product conforms to EEC directive 73/23 (Low Voltage Directive). CE.
Application
NYY cables are an economical solution to power and control wiring where mechanical protection is not required. NYY cables are an economical solution to power and control wiring where mechanical protection is not required. Used both indoors and outdoors these cables are suitable for direct burial or through ducts, local regulations permitting. Originating in Germany they are now popular in many parts of the world where cost, weight, and size savings through not having armor can offer many benefits. They are also easy to gland and terminate and require less containment.
NYY Power Cable Core Number Parameters
