The H05BQ-F Cable boasts high flexibility and resistance to mechanical loads. Its conductor uses flexible copper wire, and the insulation and sheath materials are made of weather-resistant and chemically resistant rubber and PUR materials. It has stable and reliable performance, and is oil-resistant, abrasion-resistant, and cold-resistant. It is suitable for 300/500 V low-voltage connections, power supply, and control applications, making it an ideal choice for industrial, building, and general equipment interfaces.

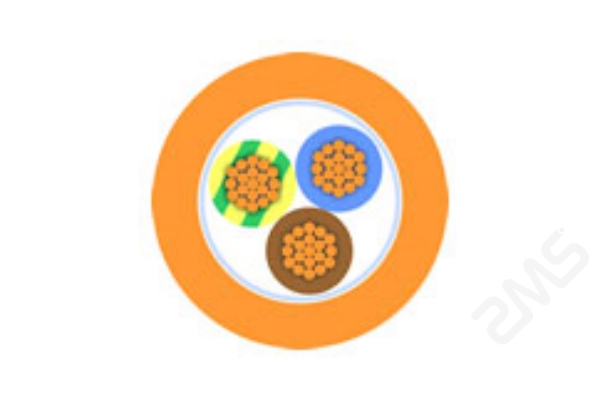

H05BQ-F Cable Structure
| Structure | Materials / Standards |
| Conductor | Thin strands of bare copper, conforming to IEC 60228 / VDE 0295 Class 5 flexible standard. |
| Insulation Layer | Rubber composites, such as EPR/EPDM |
| Sheath | PUR polyurethane orange outer sheath |
| Sheath Color | Standard orange color improves on-site visibility. |
| Mark | The core wire colors are coded according to the VDE 0293-308 standard. |
H05BQ-F Cable Specification
Rated Voltage U₀/U: 300/500 V AC
Test Voltage: 2000 V AC
Temperature Range
Flexible Application: -40 ℃ to +80 ℃
Fixed Installation: -50 ℃ to +90 ℃
Short Circuit Temperature: ≤ +250 ℃ (short-time)
Minimum Bending Radius: 5 × Cable Outer Diameter (Flexible Application)
Standards: EN 50525-2-21 / VDE / IEC, etc.
Structural Parameters
| Core Numbers | Cross-Sectional Area (mm²) | Outer Diameter |
| 2 | 0.5–1 | 6–7.2 mm |
| 3 | 0.5–1 | 6.4–7.6 mm |
| 4 | 0.5–1 | 7–8.5 mm |
| 5 | 0.5–1 | 7.7–9 mm |
Note: The structural specifications described are common and include multi-core designs to accommodate different currents and applications. However, these are not absolute or unique values. If you require a quote, please get in touch with us to provide the specific structural parameters.
Typical Application
H05BQ-F cables excel in the following scenarios due to their flexibility and durability:
Power connections for industrial equipment, such as mobile devices and industrial control cabinets;
Power/control lines for machine tools and automated machinery;
Mobile power connections at construction sites;
Processing equipment, portable tools, and testing lighting;
Various indoor and short-term outdoor mechanical connection applications.
Become Your Choice
- Class 5 high-flexibility copper conductor for frequent relocation applications
- PUR sheath provides excellent oil, abrasion, and chemical resistance
- Maintains flexibility in low-temperature environments
- UV resistant, ozone resistant, and resistant to microbial corrosion
- Suitable for both indoor and outdoor use (short-term outdoor use)
- Core wire colors are clearly visible for easy identification and installation
