ZMS Cables, a leading global provider of industrial cable solutions, exports our H05RN-F cables to a wide range of power projects around the globe, designed for the most demanding industrial applications. With a focus on durability, flexibility, and safety, H05RN-F cables meet stringent international standards, making them ideal for heavy-duty and mobile applications.

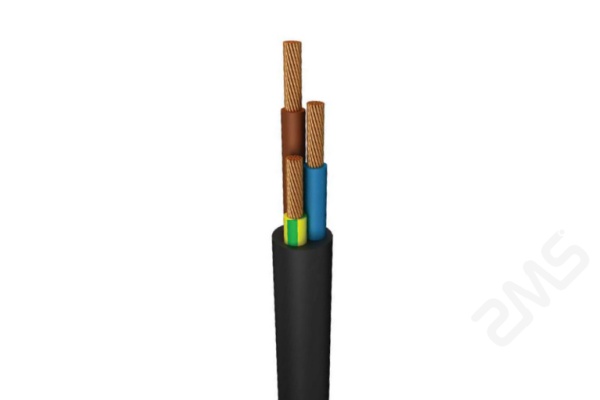

H05RN-F Cable Construction
| Conductor | Stranded Copper Conductors | The core of the cable consists of stranded copper conductors. Stranding increases the flexibility of the cable, making it well-suited for applications where bending and movement are frequent. |
| Conductivity | The use of high-purity copper ensures low resistance and reliable power transmission. | |
| Insulation Layer | High-Quality Rubber Compound | Surrounding the conductor is an insulation layer made from a robust rubber compound. This insulation provides excellent electrical isolation and protection against thermal and chemical stresses. |
| Performance | The insulation is engineered to offer superior resistance to oil, abrasion, and adverse environmental conditions, which is essential for industrial settings. | |
| Outer Jacket (Sheath) | Protective Rubber Sheath | The outermost layer is a durable rubber jacket that protects the inner layers from mechanical damage, chemical exposure, and weather-related wear. |
| Flexibility & Safety | This layer not only enhances the cable’s mechanical strength but also contributes to its overall safety by providing flame retardant properties in many formulations. |
H05RN-F Cable Specification
| NO.of Cores | Nominal Cross Sectional Area mm² | Maximum Conductor Diameter mm | Nominal Thickness Of Insulation mm | Nominal Overall Diameter mm | Copper Index (kg/km) | Nominal Weight kg/km | |
| Minimum | Maximum | ||||||
| 2 | 0.75 | 0.95 | 0.6 | 5.7 | 7.4 | 14.4 | 44 |
| 2 | 1 | 1.3 | 0.6 | 6.1 | 8 | 19.2 | 55 |
| 3 | 0.75 | 0.95 | 0.6 | 6.2 | 8.1 | 21.6 | 60 |
| 3 | 1 | 1.3 | 0.6 | 6.5 | 8.5 | 28.8 | 72 |
| 4 | 0.75 | 0.95 | 0.6 | 6.8 | 8.8 | 28.8 | 82 |
| 4 | 1 | 1.3 | 0.6 | 7.1 | 9.3 | 35.6 | 87 |
H05RN-F Cable Standard
IEC/EN 50525-2-21，BS 6500:2000，NF C 32-102-4，VDE 0282-4，EN 50575:2014+。
H05RN-F Cable Technical Parameter
Temperature range：From -30C up to +60℃
Nominal volatge：Uo/U 300/500V
Minimum Bending Radius：Fixed – 4 x overall diameter, Mobile – 6 x overall diameter
H05RN-F Cable Application
H05RN-F cables are a common model in the flexible rubber cable assortment, and their perfect flexibility is ideal for industrial applications where tensile and ductile pressures are high.
Decorative Lighting
It is suitable for power connection of decorative light strings and handheld service lights, can maintain flexibility in low-temperature environments, and is suitable for indoor and outdoor use.
Household & Office Equipment
Suitable for power connections of household appliances and office equipment in kitchens, offices, etc., able to withstand low mechanical stress.
Power Connections for Industrial Equipment
It can be used for power connections to industrial equipment, is suitable for environments with mild mechanical stress, and can be used in dry, humid, and oily environments.
Construction Site
On construction sites, H05RN-F cables are used as connecting cables for mobile equipment, electric motors and power tools with good mechanical strength and abrasion resistance.
