Control Cable

Various types and specifications of control cables

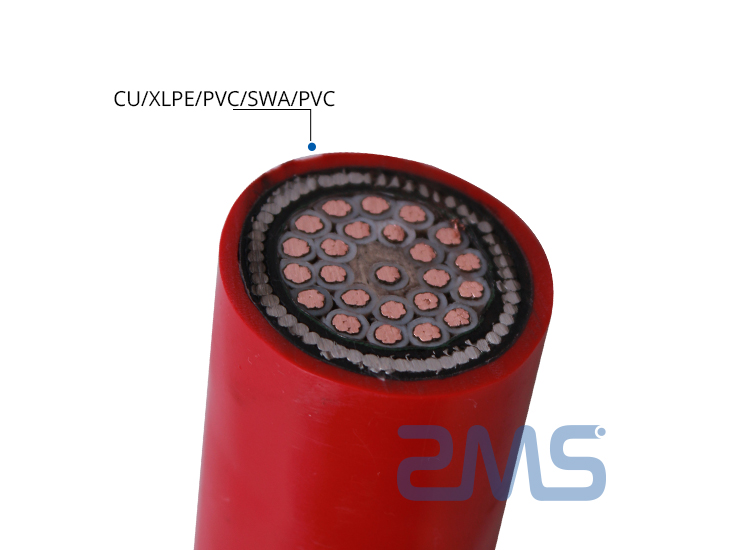

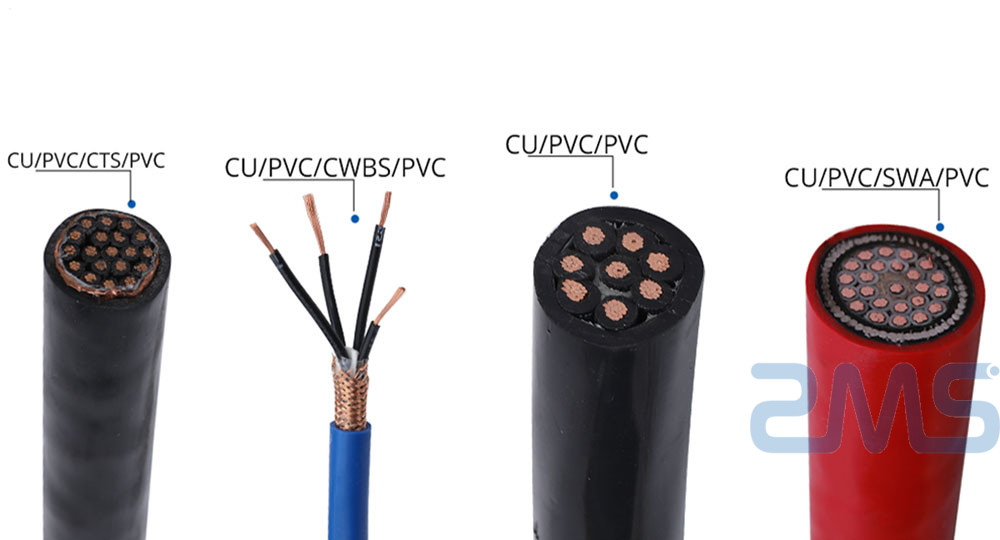

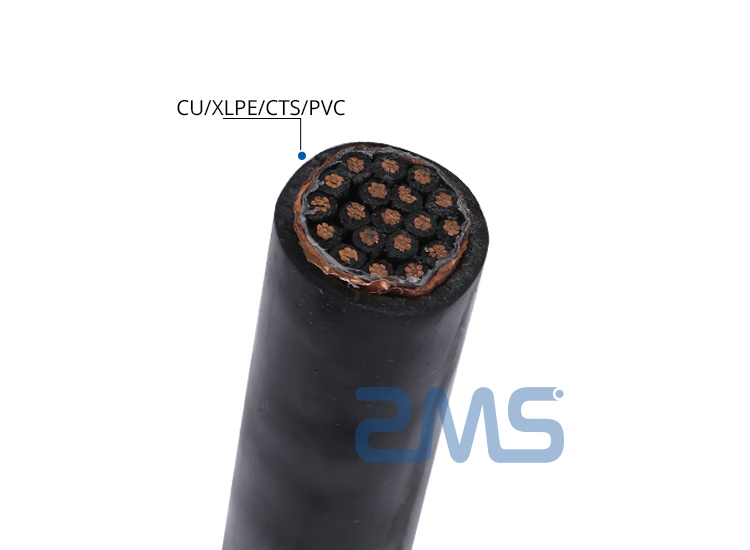

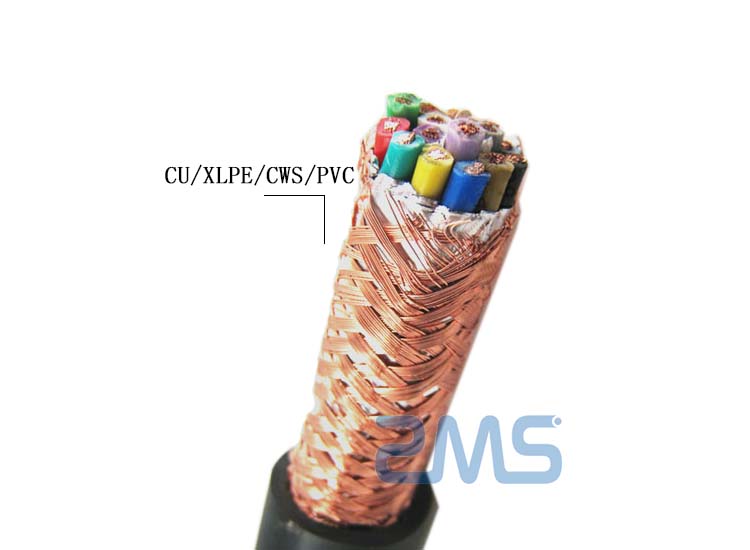

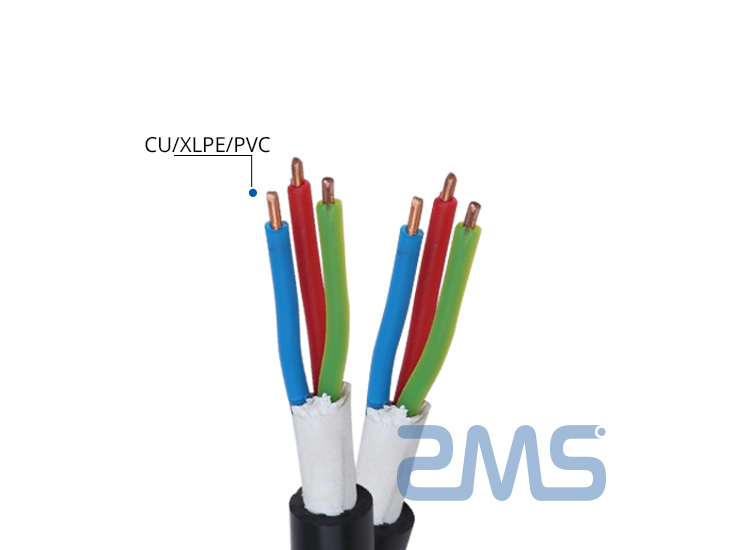

Control Cables, generally, multi-conductor cables, one of the giants of the cable industry, are often used in industrial development and household electricity. These flexible cables are low voltage PVC XLPE insulation control cables, Instrument Cables, Galvanized Steel Wire Armored Control Cable, Flexible Cable, Control Cable with Screen/Shield, 0.6/1kV Paired or Triplex Instrument Cables, 0.6/1kV Paired or Triplex Armored Instrument Cable, etc.

Get a Free Quotation

About ZMS Control Cable Products

SY Series PVC /PVC/GSWB/PVC Control Cable
Get a Free Quotation

SY PVC /PVC/GSWB/PVC Control Cable

Conductor material: Annealed copper wire according to BS6360 / VDE0295 Class 5.
Insulation Shield: PVC
Shielding material: Tinned steel woven wire mesh (GSWB)
Sheath material: PVC (Type TM2 to BS7655)
Rated voltage: 300/500V
Operating temperature range: Coiled: -15°C to +70°C Fixed: -35°C to +70°C
Minimum bending radius: 6 times the maximum outside diameter of the cable

The field of application covers electrical systems installed in dry or humid rooms, especially in industrial use. They are suitable for use as measuring, monitoring and control cables in machine tool construction, plant installation work, power stations, heating and air conditioning systems, refrigeration equipment, office automation equipment, and data processing systems. The tightly woven steel wire mesh provides effective physical protection for the cable. *Note: This cable should not be installed in areas where continuous curves are required.

Reference Standard: VDE specification BS6500 and VDE0250

pvc insulated electric copper wire cable 4 core flat telephone wire, AWM 20251 telephone cable
Get a Free Quotation

PVC Insulated Flat Cable

Conductor material: flexible class 5 copper conductor
Insulation material: polyvinyl chloride
Sheath material: polyvinyl chloride
Sheath color: black
Rated voltage: 300/500V
Rated temperature: -5 to +70°C
Minimum bending radius: 10 times the thickness of the cable
Core identification: Black core with white numbers Conductor green/yellow each.
Maximum lifting height: 80m
Maximum speed: 10m/s

The cables are used in transportation for lifting equipment and as power supply cables in building transportation systems to move mechanical components. These cables are highly flexible and can be subjected to large and frequent bends.

Reference Standard: VDE specification BS6977, IEC227 Part 6 and CENELEC HD 359 S2

H05VVF control cable
Get a Free Quotation

H05VVF Control Cable

300/500V control cable with super flexible copper conductor, thermoplastic PVC insulation, and thermoplastic PVC sheath.

Conductor: Specialized ultra-flexible copper conductor.
Insulation: flexible 70°C thermoplastic PVC
Core construction: 2, 3, or 4 conductors articulated together
Sheath: Thermoplastic PVC

H05VVF is mostly used as a connecting cable in machine tools and electrical equipment.
Its extreme flexibility at low temperatures allows it to be used in portable equipment in both indoor and outdoor environments.

Model: 2-core 3182Y.1 control cable, 2-core 3182Y.2, 3182Y.3, 3182Y.4, 3-core 3183Y.1 control cable, 4-core 3184Y.1

Reference Standard: The cable is British Standard, subject to quotation.

Flame Retardant KVV CVV KVVP 10c 2.5sq screened control cable
Get a Free Quotation

CVV 2-30 Cores Control Cable

Conductor: Multi-strand conductor
Insulation: Black PVC
Marking: Black insulator with white numbers printed on it
Filling: Reasonable filling
Winding: Reasonable
Sheath: Black PVC
Application: Electrical equipment, control circuits in power stations, outdoors, and distribution equipment, etc.

This control cable can be produced according to GB9330-1988, IEC, DIN, and BS standards, and the factory can also produce cables according to other standards. The control cable is suitable for the wiring of electrical controlling equipment and instruments, monitoring and controlling return circuits, electrical protection, and measurement in the power distribution units under the circumstance that the rated voltage is up to 450/750V AC.

Model: CVV, CVV-S, CVV-SWA

CVVC caontrol cable
Get a Free Quotation

Control Cable A03VV-F

Insulation: PVC
Light sheath: PVC flexible control cable.
Rated voltage: 300/300 V
Rated temperature: 60 °C
Maximum tension: 50 N/mm2
Minimum bending radius: 4 times the outer diameter of the cable
Conductor: Non-tinned, annealed copper flexible conductor
Insulation: PVC of TI2 quality
Sheath: PVC of TM2 quality
Color code: 2-core brown, blue; 3-core black, brown, blue; 4-core black, black, brown, blue.

Italian Standard: CEI 20-20/5
International Standard: CENELEC HD 21.5 Sez. 3

Model: A03VVF, A05VVF, FROR, N07V-K

Control Cables by Application

Ordinary control flexible cables, flame retardant (ZR) control cables, fire-resistant (NH), low smoke and low halogen (DLD), low smoke and halogen-free (DW), high flame retardant class (GZR), temperature-resistant, cold-resistant control cables.
The use of these control cables
Mainly used for the transmission of control, measurement signals, and other cables. Control cable is suitable for mainstream and AC 50HZ, rated voltage 450/750V, 600/1000V, and below industrial and mining enterprises, modern high-rise buildings, and other long-distance operations, control furnace, signal, and protection measurement circuit. As the connection line between various types of electrical instruments and automation instrumentation devices, it plays a role in transmitting various electrical signals, to ensure the safe and reliable operation of the system.

ZMS Control Cable Catalog

ZMS CONTROL CABLE PDF

ZMS provides our partners around the world with brochures of our cable products, including aerial cables, submarine cables, control cables and other types of special cables, and more.

If you don’t know how to choose the product you need, or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS cable supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.

Service of ZMS Company

Over Productions Service: ZMS has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.

Quality Certification Services: ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.

Profession Customer Service: ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.

Delivery And Shipping Services: While we at ZMS provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.

Packaging of ZMS: ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
