ACCC Conductor
ACCC Conductor means Aluminum Conductor Composite Core cable, which is a new generation of traditional aluminum conductor steel-reinforced (ACSR conductor) cable. It is a new type of wire for overhead transmission lines. It has the advantages of lightweight, tensile resistance, good thermal stability, small slip, strong co-current ability per unit area, and corrosion resistance. This product is widely used in seaside, and mining areas, with high corrosion intensity, high pollution intensity, and conductors that are easy to dance with and other environments. The ACCC/TW carbon fiber composite wire produced by the ZMS cable manufacturer has excellent product quality. Fast and complete acceptance specifications guarantee our ability to deliver safely.
ACCC Conductor Specifications

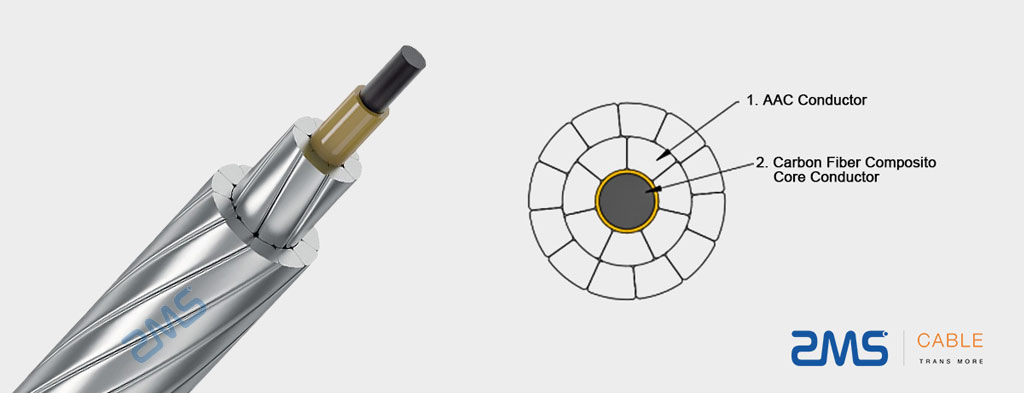

ACCC/TW (Aluminum Composite Core) is a high-temperature low sag (HTLS) overhead power line conductor cable. ACCC/TW carbon fiber composite conductor is our company’s new type of overhead power line. The cable’s central performance reinforcement assembly is made of carbon fiber and glass fiber composites. 2-4 The 1350-type aluminum (alloy) wires that were returned are checked on the periphery of the reinforcement. The returned 1350 aluminum (alloy) wire meets the requirements of ASTM B857/ASTM B609.
ACCC/TW overhead lines are in many ways due to the current Concentric Stranded Aluminum Strands (ACSR or ACSS). Product advantages are reflected in transmission capacity, wire sag, wire loss, the structure of reinforcing core, etc. At the same time, the installation, and replacement of the product are very convenient, the line can be quickly replaced at a lower cost, and the transmission capacity of the line can be increased. This brings huge benefits to power companies. Ultimately, it brings convenience to industry, businesses, and residents.

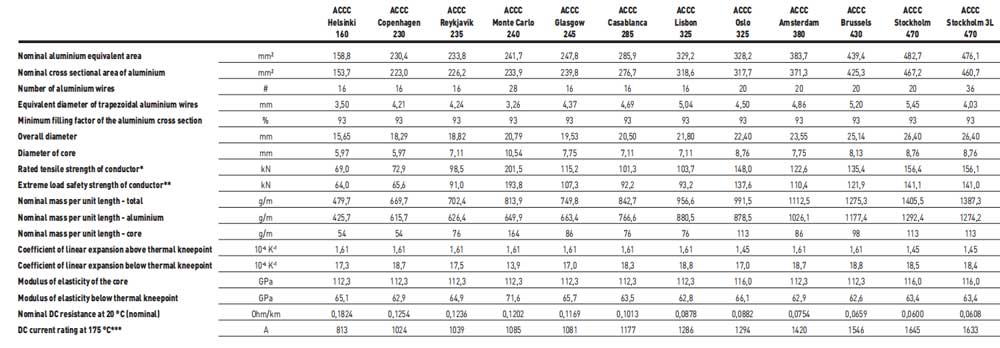

ACCC Conductor Data Sheet
ACCC/TW (Aluminum Composite Core) is one of the materials with high-temperature low sag (HTLS conductor). Other materials for high-temperature low trap conductors are the Invar Conductor series (TACIR and ZTACIR), Gap Type Conductor, ACSS Type Conductor, TACSR/AW Type Conductor, etc.
ACCC/TW Conductor Features
ACCC/TW carbon fiber composite conductors also have some important features and advantages compared to traditional concentrically stranded aluminum conductors (ACSR or ACSS):
- Higher Capacity – more than twice the normal capacity of conventional conductors – can alleviate bottlenecks brought about by previous power transmissions and provide a “no-regrets” path for the future development of the grid.
- Higher Reliability and Toughness – ZMS Cables produces ACCC conductors with higher strength and low-sag performance, combined with the factory’s superior core technology, giving the cable greater reliability and tensile toughness for enhanced cable performance over time.
- Reduced Project Costs Reduced Time – ACCC conductors provide the most power quickly at the lowest investment cost when used for new lines or when developing new conductor projects.
- Improved Efficiency – ACCC conductors are manufactured to exacting standards and requirements to minimize line losses under any load condition, lowering costs for utilities and consumers, and reducing greenhouse gas and carbon dioxide emissions.
- Easier to Use – The steel wire of the ACCC conductor adopts annealed aluminum wire stranding structure at the periphery of the reinforcing core, which gives it self-damping characteristics, thus making the line vibration-resistant and eliminating the need for damping devices such as vibration-damping hammers.
Cooperation with ZMS
Indonesia Partners With ZMS on ACCC Cables
Product: ACCC Laredo
Quantity: 16T
Packing: Wooden Drum
Advantages: ZMS perfectly achieves timely production and on-time delivery within thirty days with a variety of product qualifications, which is faster than many manufacturers, and is highly regarded and trusted by customers.
Service of ZMS Cable Company
Over Productions Service: ZMS has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
Quality Certification Services: ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.
Profession Customer Service: ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
Delivery And Shipping Services: While we at ZMS provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
Packaging of ZMS: ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
