Low Voltage Cable
XLPE Low Voltage Power Cables are mainly used for power transmission and distribution in 0.6 / 1kv or lower output power systems. Its applications include construction electricity, factories, mining, petrochemical, and electronic communications, etc.
No matter what kind of application requirements you need for the product. Our products can withstand the degree of mechanical external force or tension according to the different laying environments, to develop different parameter standards to meet these different application requirements and ensure that they can complete the product work tasks outstandingly.

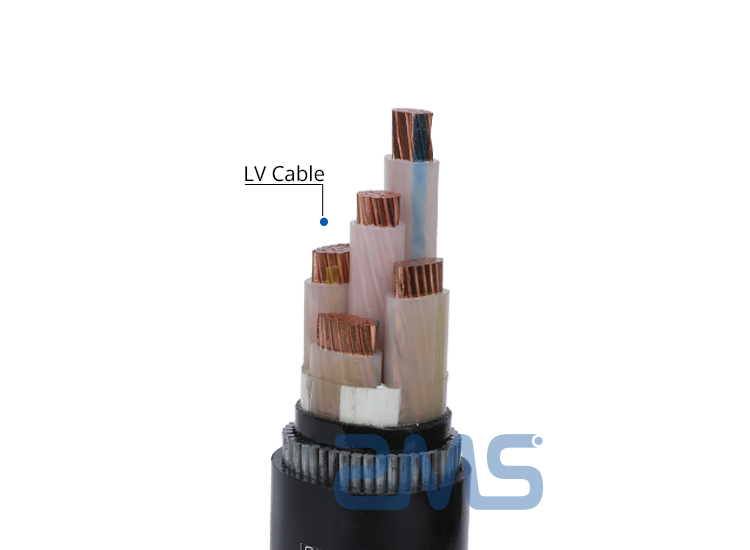

Description of ZMS LV Cable Products
Application
The low voltage power cable of ZMS cable has good electrical and mechanical properties, the best chemical resistance, environmental stress, and flame resistance. Moreover, its structure is simple, easy to use, and saves project costs. It is suitable for laying indoor, tunnel, canal, and underground laying areas.
Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only), or other standards such as BS,DIN and ICEA upon request.

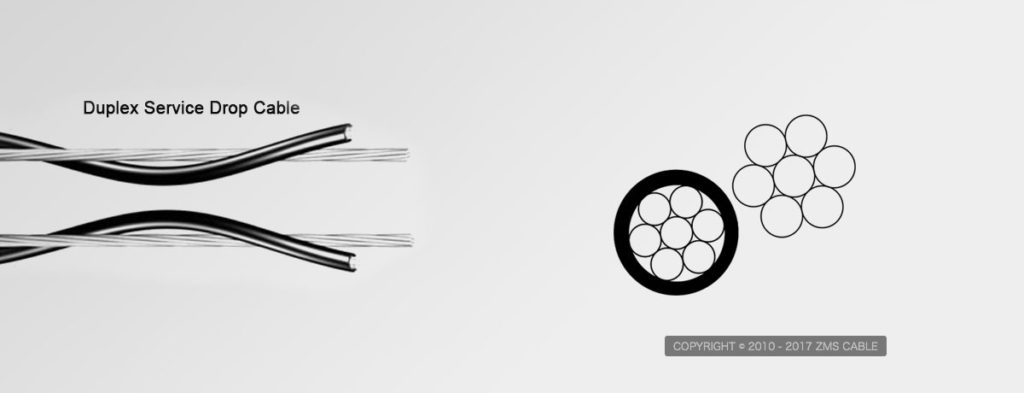

Application
Low-voltage ABC cable, suitable for overhead power lines with AC rated voltage 0.6 / 1kv and below. Because it has less installation, maintenance and operation costs, it is widely used in power transmission and distribution lines of various voltage levels. At the same time, they have good corrosion resistance, so they are often used across river valleys and coastal areas.
Standards:
IEC 61089, BS 7870, DIN 48201, ASTM B399, BS EN50183, NFC33-209
Construction
Conductor: Copper, Aluminum, Aluminum Alloy;
Insulation: PVC, HDPE, XLPE

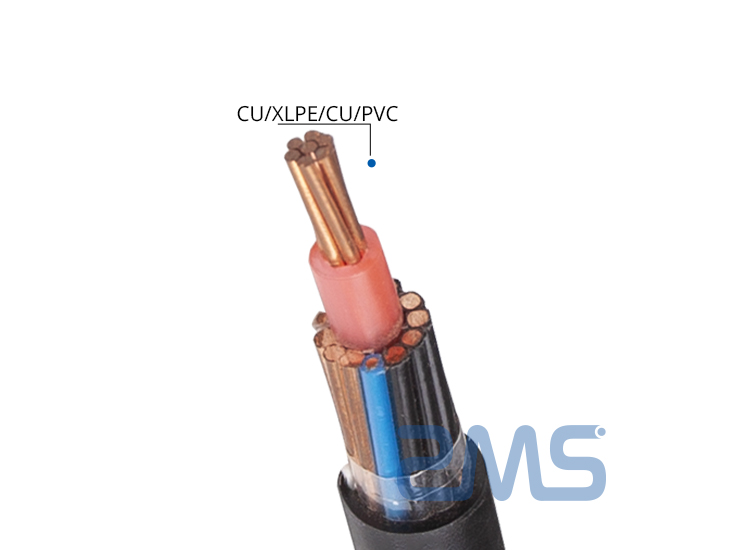

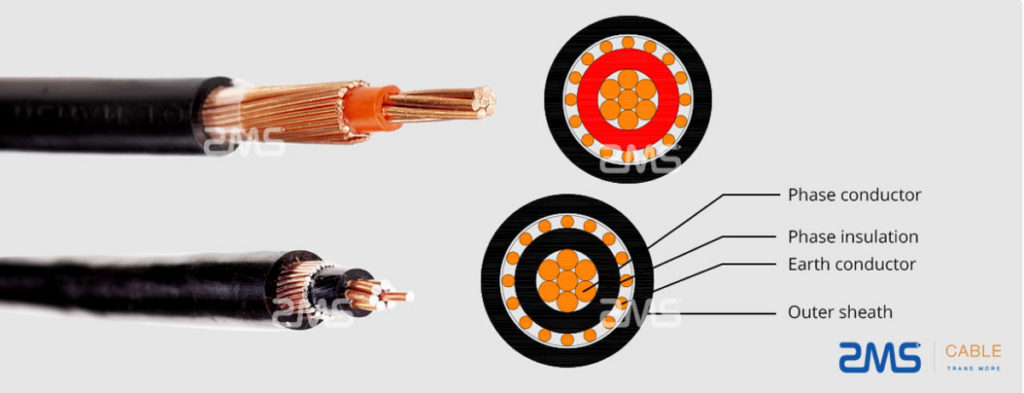

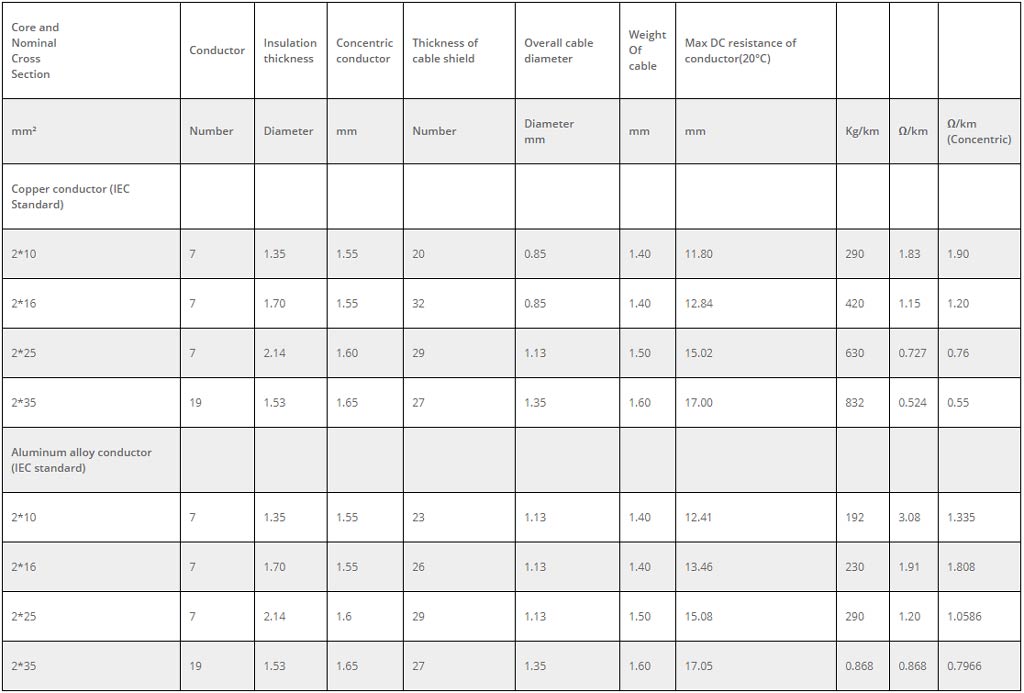

Application

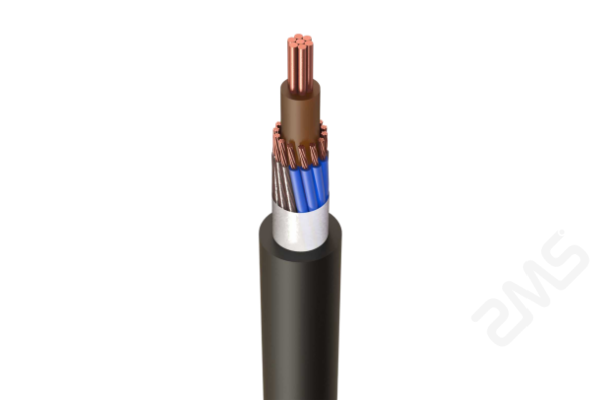

XLPE Insulated Concentric cables are commonly used as energy supply cables. It can be used as overhead, outdoor, or buried underground. The most common power distribution systems, street lighting, temporary electricity for buildings, etc. The composition of concentric cables can be single-core or multicore, depending on different application tasks.
Standards:
ASTM-B; ASTM-D; UL
Construction:
Conductor: 8000 Series aluminum alloy/Copper class 2
Insulation: XLPE
Cable Inner Sheath: PVC
Cable Tape: Non-absorbent material or OEM
Cable Outer Sheath: XLPE/PVC/PE
Low Voltage Cable Catalog
ZMS LOW VOLTAGE CABLE PDF
ZMS provides our partners around the world with brochures of our cable products, including aerial cables, submarine cables, control cables and other types of special cables, and more.
If you don’t know how to choose the product you need, or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS cable supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
- 0.6/1kV XLPE insulated low smoke halogen free power cable 5 cores
- 0.6/1kV XLPE insulated low smoke halogen-free flame retardant power cable 5 cores
- 0.6/1kV XLPE insulated PVC sheathed steel wire armored power cable 5 cores
- 0.6/1kV XLPE insulated PVC sheathed steel tape armored power cable 5 cores
- 0.6/1kV XLPE insulated PVC sheathed power cable 5 cores
- 0.6/1kV insulated PVC sheathed steel tape armored power cable 5 cores
Short Circuit Temperature:
Conductor cross-section ≤300mm2, 160°C
Conductor cross-section ≤300mm2, 140°C
Conductors: Copper or aluminum conductors of Class 1 or Class 2 according to IEC 60228.
Insulation: PVC mixtures conforming to PVC/ST1 according to IEC 60502-1.
Scope of application: This product is suitable for fixed laying in AC 50Hz rated voltage 0.6/1kV and below transmission and distribution lines.

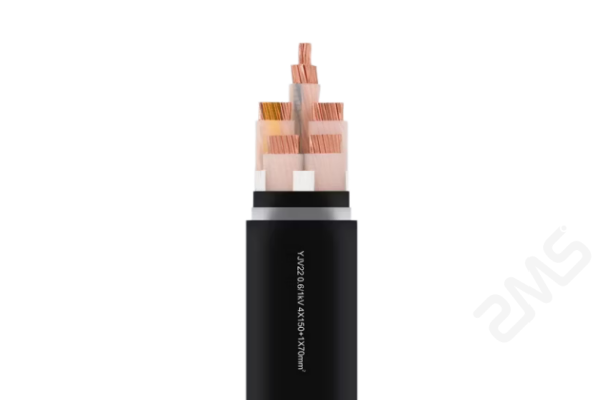

- 0.6/1kV XLPE insulated low smoke halogen free power cable 4 cores
- 0.6/1kV XLPE insulated low smoke halogen free power cable 4+1 core
- 0.6/1kV XLPE insulated low smoke halogen-free flame retardant power cable 4 cores
- 0.6/1kV XLPE insulated PVC sheathed steel wire armored power cable 4 cores
- 0.6/1kV PVC insulated and sheathed power cable 4 cores
Short circuit temperature:
Conductor cross-section ≤300mm2, 160°C
Conductor cross-section ≤300mm2, 140°C
Conductor: Copper or aluminum conductor of category 1 or 2 according to IEC 60228.
Insulation: PVC mixtures conforming to PVC/ST1 according to IEC 60502-1.
Scope of application:
This product is suitable for fixed laying use in AC 50Hz rated voltage 0.6/1kV and below transmission and distribution lines.
- 0.6/1kV XLPE insulated low smoke halogen free power cable 3 cores
- 0.6/1kV XLPE insulated low smoke halogen-free flame retardant power cable 3 cores
- 0.6/1kV XLPE insulated PVC sheathed steel wire armored power cable 3+2 cores
- 0.6/1kV XLPE insulated PVC sheathed steel wire armored power cable 3 cores
- 0.6/1kV XLPE insulated PVC sheathed steel tape armored power cable 3 cores
Operating Temperature: 90℃
Short circuit temperature: 250℃
Cable Construction:
Conductor: Copper or aluminum conductor of Class 1 or Class 2 under IEC 60228.
Insulation: Cross-linked polyethylene according to IEC 60502-1.
Inner cushioning: Extruded PVC or twisted PVC tape.
Armoring: Armouring for multi-core cables consists of galvanized steel tape while single-core cables shall consist of non-magnetic stainless steel tape.
Sheath: PVC/ST2 by IEC 60502-1.
Scope of application: This product is suitable for AC 50Hz rated voltage 0.6/1kV and below transmission and distribution lines in fixed laying use. Directly buried in the ground, the cable can withstand a certain mechanical external force, but can not withstand large tensile force.
- 0.6/1kV PVC insulated and sheathed power cable single-core
- 0.6/1kV XLPE Insulated PVC Sheathed Steel Tape Armored Power Cable Single Core
- 0.6/1kV cross-linked polyethylene insulated PVC sheathed power cable single core
- 0.6/1kV insulated PVC sheathed steel tape armored power cable single core
- 0.6/1kV XLPE insulated PVC sheathed steel wire armored power cable single core
Operating temperature: 90°C
Short circuit temperature: 250℃
Cable Construction:
Conductor: Copper or aluminum conductor of Class 1 or 2 according to IEC 60228.
Insulation: Cross-linked polyethylene according to IEC 60502-1.
Inner cushioning: Extruded PVC or wound PVC tape.
Armoring: Non-magnetic stainless steel wire for single-core cable armoring and galvanized steel wire armoring for three-core cable armoring in AC power systems.
Sheath: PVC/ST2 conforms to IEC 60502-1 standard.
Scope of application: This product is suitable for AC 50Hz rated voltage 0.6/1kV and the following transmission and distribution lines in the fixed laying use. Directly buried in the ground, the cable can withstand a certain mechanical force, but can not withstand large tensile force.
Low Voltage Wires are generally divided into LV PVC insulated cables, LV XLPE insulated cables, LV rubber insulated cables, and so on according to their insulation types. According to its different work types and attributes, it can be divided into power cables, overhead bundled power cables, low-voltage lighting cables, special low-voltage power cables, and fire-resistant power cables with anti-(fire) resistance.
Partnering with ZMS
Supply of LV cables in cooperation with local projects in Switzerland
- 4core Armrd, BS5467, 4x35mm2 （1000m)
- 3Core, BS6746, 3x6mm2（3000m）
- The remaining low-voltage models total more than 20,000 meters.
Customers have found that ZMS has a much faster lead time than most suppliers and offers an 18-month warranty and qualification.
Local Supply of Low Voltage Cables for Mexico
- 600V 1*2*16 AWG Instrumentation Cable (1965M)
- 600V 2*14 AWG Instrumentation Cable (2500M)
- 600V 2*14 AWG Instrumentation Cable (900M)
ZMS was successfully produced and delivered ahead of schedule with the Mexican partner, and offered a certain warranty period and multiple qualifications.
Low-Voltage Line Project with Indonesia
- 0.6/1kV rubber insulated cable NSHTOU-J 4*10mm2 (200m)
NYFGBY cable 4x240mm2 (1000m)
ZMS has worked very well with Indonesia, with fast delivery lead times, fully qualified products, and an 18-month warranty.
Service of ZMS Company
Over Productions Service: ZMS has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
Quality Certification Services: ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.
Profession Customer Service: ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
Delivery And Shipping Services: While we at ZMS provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
Packaging of ZMS: ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
