GYXTW Series Fiber Optic Cable

GYXTW Fiber Optic Cable Series

ZMS specializes in manufacturing and selling single-mode and multimode fiber optic cables, supporting customization and complete models. GYXTW series fiber optic cables are cheap, and commonly used cores are in stock. For inquiries about monitoring fiber optic cable, 4 core fiber optic cable price, 6 core fiber optic cable price, 8 core fiber optic cable price, 12 core fiber optic cable price, please contact us.

Featured Fiber Optic Cable Products

Get a Free Quotation

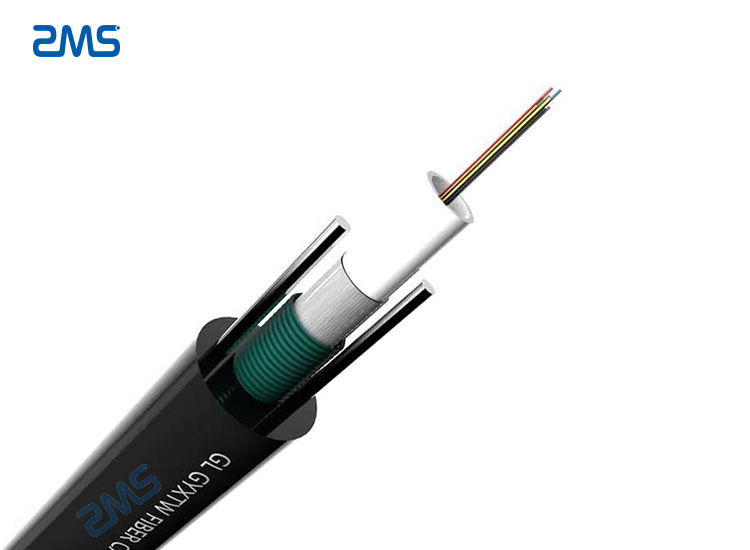

GYXTW-2

Product Classification of GYXTW Fiber Optic Cable

GYXTW-optic-cable
Get a Free Quotation

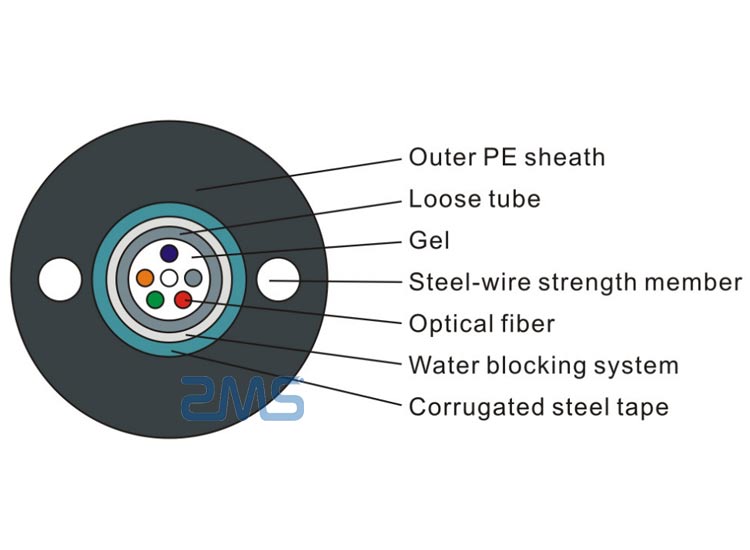

GYXTW Fiber Optic Cable

GYXTW fiber optic cable is made of 250μm optical fiber in a high-modulus material pine sleeve filled with waterproof compound. The loose tubing is wrapped longitudinally with a double-sided plastic coated steel tape (PSP). The water barrier material is added between the steel tape and the loose tubing to ensure compactness and longitudinal water resistance of the fiber optic cable. Two parallel steel wires are placed on both sides and then extruded into a polyethylene sheath to form the cable.

Product Features
1. Optical fiber loose casing.
2. Water-blocking material longitudinally wrapped around the center PBT loose tube.
3. Round composite rolled steel tape bonded polyethylene outer sheath.
4. Strengthen parallel 4 steel wire is located outside the round composite steel tape armor layer.

GYXTW Outdoor Fiber Optic Cable Technical Parameter
Fiber Count(F)Cable Diameter(mm)Cable Weight(kgs)Tensile Strength(N)Crush Strength(N)Min. Bending RadiusTemperature Range(℃)
Long TermShort TermLong TermShort TermLong TermShort Term
28.0786001500300100010D20D-40~+60
48.0786001500300100010D20D-40~+60
68.0786001500300100010D20D-40~+60
88.0786001500300100010D20D-40~+60
108.0786001500300100010D20D-40~+60
128.0786001500300100010D20D-40~+60
gyts-optic-cable
Get a Free Quotation

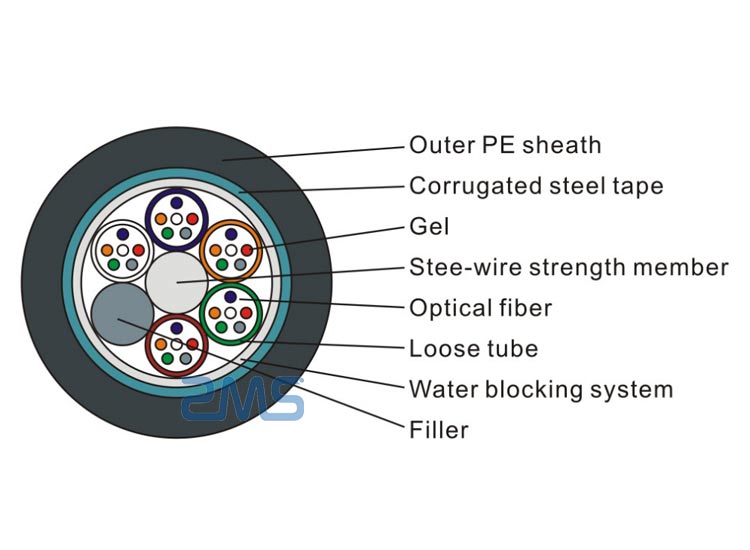

GYTS Fiber Optic Cable

The structure of the GYTS fiber optic cable is 250 µm optical fiber in a high modulus material made of a loose tube, the loose tube is filled with waterproof compound. At the center of the core is a metal reinforcement core, which for some cores is extruded with a layer of polyethylene (PE). The loose sleeving and filler rope are twisted around the central reinforcement to form a compact and rounded core, with gaps in the core filled with a water-blocking filler. Double-sided plastic coated steel tape (PSP) is wrapped longitudinally and then extruded with PE sheath to form the cable.

Product Features
1. PBT optical fiber loose sleeve.
2. High-strength center reinforced phosphorized steel wire.
3. Cable core filled with oil paste.
4. Loose sleeved laminated structure.
5. Steel – polyethylene bonded sheath.

GYTS Outdoor Fiber Optic Cable Technical Parameter
Fiber Count(F)Cable Diameter(mm)Cable Weight(kgs)Tensile Strength(N)Crush Strength(N)Min. Bending RadiusTemperature Range(℃)
Long TermShort TermLong TermShort TermLong TermShort Term
2~309.61026001500300100010D20D-40~+60
32~3610.21256001500300100010D20D-40~+60
38~6010.91296001500300100010D20D-40~+60
62~7211.61606001500300100010D20D-40~+60
74~9613.21896001500300100010D20D-40~+60
98~12014.72256001500300100010D20D-40~+60
120~14416.22616001500300100010D20D-40~+60
gyfty-optic-cable
Get a Free Quotation

GYFTY Fiber Optic Cable

The structure of GYFTY fiber optic cable is 250 µm optical fiber in a high modulus material made of loose sleeving, the loose sleeving filled with waterproof compound. The center of the core is an FRP non-metallic reinforcement core, around which the loose tubing (and filler rope) is twisted to create a compact and round core with a water barrier filler in the gaps. The gaps inside the core are filled with water barrier filler. The cable core is extruded with a layer of polyethylene sheath to create the cable.

Product Features
1. Non-metallic reinforcement and laminated structure design to ensure that the optical cable has very good mechanical and temperature characteristics.
2. The tube is filled with special oil paste, which provides critical protection for optical fiber.
3. The cable core is fully filled with water-blocking ointment for effective waterproofing.
4. High strength non-metallic reinforcement to bear the axial load.
5. The outer sheath has good anti-UV radiation performance.

GYFTY Outdoor Fiber Optic Cable Technical Parameter
Fiber Count(F)Cable Diameter(mm)Cable Weight(kgs)Tensile Strength(N)Crush Strength(N)Min. Bending RadiusTemperature Range(℃)
Long TermShort TermLong TermShort TermLong TermShort Term
2~249.666601500300100010D20D-40~+60
26~369.687601500300100010D20D-40~+60
38~6010.989601500300100010D20D-40~+60
62~7211.6118601500300100010D20D-40~+60
74~9613.2143601500300100010D20D-40~+60
98~12014.7175601500300100010D20D-40~+60
120~14416.2208601500300100010D20D-40~+60

About ZMS Optical Fiber Cable Products

Fiber optic power cable manufacturer

ZMS is a leading cable and fiber optic cable manufacturer in China with 30 years of experience. ZMS provides one-stop R&D-production-sales logistics services to more than 100 countries around the world. ZMS optical cable passed the ISO 9001:2000 quality system certification in 2010. With a complete quality control system, excellent technical team, advanced equipment, and reliable quality, our products enjoy a high reputation in the domestic and foreign markets.

We have many years of experience in the research and development, production, and sales of power optical cable, outdoor optical cable, indoor optical cable, and fiber optic communication products. High-quality production and management personnel and professional production and testing equipment. With strong scientific and technological strength, modern management methods, high-quality products, and the spirit of good faith, we have won the trust of our customers nationwide.

We not only produce high-quality fiber optic cable products but also types of cable accessories. Include cable insulators, cable terminations, cable lugs, overhead line fittings, and other cable accessories made of top materials. ZMS company relies on excellent product quality, meticulous customer service, and efficient and fast delivery capabilities. We sincerely invite you to cooperate with us to achieve excellent results.

ZMS Cable Company Service

Over Productions Service: ZMS has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.

Quality Certification Services: ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.

Profession Customer Service: ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.

Delivery And Shipping Services: While we at ZMS provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.

Packaging of ZMS: ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
