RZ1-K 0.6/1kV Cable is a type of photovoltaic solar cable, a flexible, low-smoke, halogen-free, low-voltage power cable. It is specifically designed for fixed installations and operates at 0.6/1kV. Manufactured in accordance with Spanish standard UNE 21123-4, this cable is widely used in buildings, public facilities, and industrial power distribution systems with high fire-resistance requirements. RZ1-K cable uses a Class 5 flexible copper conductor and an LSZH insulation sheath, exhibiting excellent flame retardancy, low smoke emissions, and ease of installation in confined spaces.

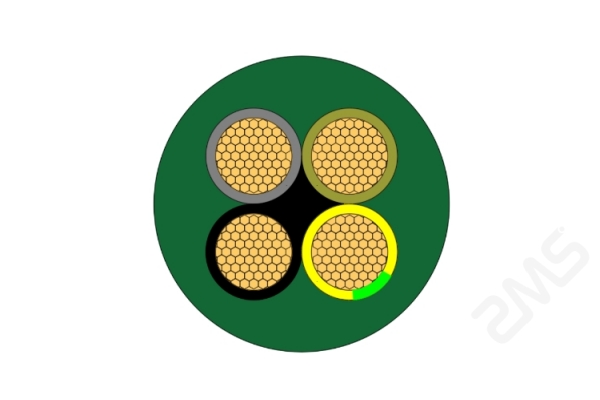

RZ1-K 0.6/1kV Cable Structure
Conductor: Flexible copper conductor, Class 5 (UNE-EN 60228).
Insulation: XLPE or HEPR, LSZH compound according to UNE 21123-4.
Filler (for multicore types): Flame-retardant LSZH filler (optional, depending on design).
Sheath: LSZH outer sheath (Black or according to customer requirements).
Core Identification: Single core: Black, Brown, Blue, or Green/Yellow； Multicore: Color coded or numbered
Technical Specifications
| Operating Temperature | Max. Short Circuit Temperature | Bending Radius | Standards | CPR Class |
| -15°C to +90°C | 250°C (5s) | 5 × cable diameter | UNE 21123-4 / IEC 60502-1 / EN 60228 | Cca / B2ca (depending on type) |
RZ1-K Cable Sizes & Electrical Characteristics
| Cross Section (mm²) | Conductor Type | Outer Diameter (Approx.) | Max. Resistance (Ω/km) | Current Rating (A) |
|---|---|---|---|---|
| 1.5 mm² | Class 5 | 4.8 mm | 12.1 | 19 |
| 2.5 mm² | Class 5 | 5.4 mm | 7.41 | 26 |
| 4 mm² | Class 5 | 6.0 mm | 4.61 | 36 |
| 6 mm² | Class 5 | 6.6 mm | 3.08 | 46 |
| 10 mm² | Class 5 | 8.0 mm | 1.83 | 63 |
| 16 mm² | Class 5 | 9.1 mm | 1.15 | 85 |
| 25 mm² | Class 5 | 10.9 mm | 0.727 | 113 |
| 35 mm² | Class 5 | 12.0 mm | 0.524 | 141 |
| 50 mm² | Class 5 | 13.6 mm | 0.387 | 177 |
| 70 mm² | Class 5 | 16.0 mm | 0.268 | 221 |
| 95 mm² | Class 5 | 17.8 mm | 0.193 | 261 |
| 120 mm² | Class 5 | 19.5 mm | 0.153 | 299 |
| 150 mm² | Class 5 | 21.5 mm | 0.124 | 339 |
Note: The above data provide only cross-sectional structural data for this cable. If you need the table, it can be expanded to other sizes, such as 185㎡, 240㎡,or 300㎡. Please get in touch with us for details. The above data is not the only standard.
RZ1-K Cable Key Features
- Low Smoke and Halogen-Free: Produces minimal smoke and no corrosive gases during combustion.
- High Flame Retardant Properties: Recommended for emergency and fire-sensitive locations, preventing fire from spreading.
- Flexible Category 5 conductor: Facilitates wiring and installation, suitable for complex wiring paths.
- Excellent Thermal Conductivity: Continuous operating temperature up to 90°C, enhancing heat resistance and safety.
- Some models meet CPR standards and are suitable for indoor and outdoor fixed installations.
Applications of RZ1-K Cable
RZ1-K 0.6/1kV cables are ideal for meeting stringent fire safety requirements, including:
- residential and commercial buildings;
- airports, hospitals, schools, and subway stations; industrial power distribution networks;
- switchboards and control panels;
- cable trays, conduits, and underground installations;
- environments where the emission of corrosive gases must be minimized, and are especially recommended for high-traffic public areas.
Why Choose ZMS for RZ1-K LSZH Cables?
- With over 30 years of experience in cable manufacturing, we export to 138 countries and regions.
- We strictly adhere to IEC/EN/UNE/BS standards for quality control.
- We use certified low-smoke halogen-free (LSZH) flame retardant compounds.
- We offer fast delivery and highly competitive prices to global distributors.
- Customizable colors, CPR ratings, and packaging.
- Our clients include contractors, EPC companies, wholesalers, and OEM brands.
